SM3070C-AR1 3-in-1 LED Warning + Reverse + Brake Light

SM3070C-AR1

3-in-1 LED Warning + Reverse + Brake Light

Compact 129mm signalling solution for trucks, mining, agriculture, forklifts and emergency vehicles

IP6K9K ECE R10 / SAE J595 Class1 12V-24V DC 9 Flash Modes + Memory 18W / 6 LEDs 3-Year Warranty

One ultra-slim lamp, three critical functions. Brilliant white reverse/brake illumination paired with high-visibility amber warning strobe — built to withstand high-pressure steam cleaning and the harshest job sites.

Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

The SM3070C-AR1 packs warning, reversing, and braking functions into a single ultra-slim housing just 13mm thick. Designed for trucks, mining rigs, harvesters, forklifts, and emergency vehicles where space is tight but visibility is non-negotiable.

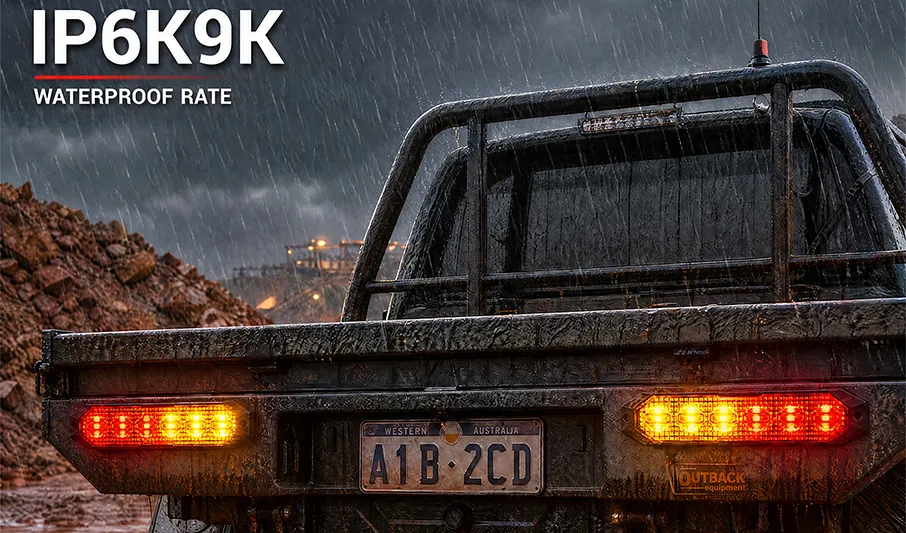

Beyond being fully dust-tight and waterproof, the IP6K9K rating means this lamp survives close-range high-pressure steam-jet cleaning — a requirement in food processing, mining, and heavy construction. The PC lens and die-cast aluminum base combine impact resistance with superior heat dissipation.

OEM / ODM Ready (MOQ 500 units): Custom logo, packaging, cable length, and flash patterns. Supported by our IATF 16949 & ISO 9001 certified factory with 18+ years of experience. Defect rate below 0.2%, 100% on-time delivery.

Technical Specifications

Parameter	Specification
Product Model	SM3070C-AR1

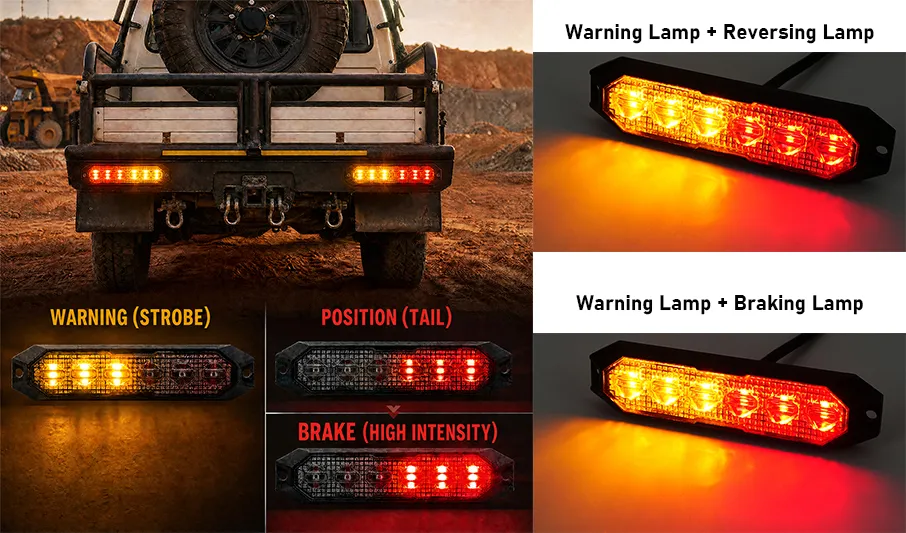

Functions	3-in-1: Warning Lamp + Reversing Lamp + Braking Lamp
LED Configuration	6 LEDs (3 White Reverse/Brake + 3 Amber Warning)

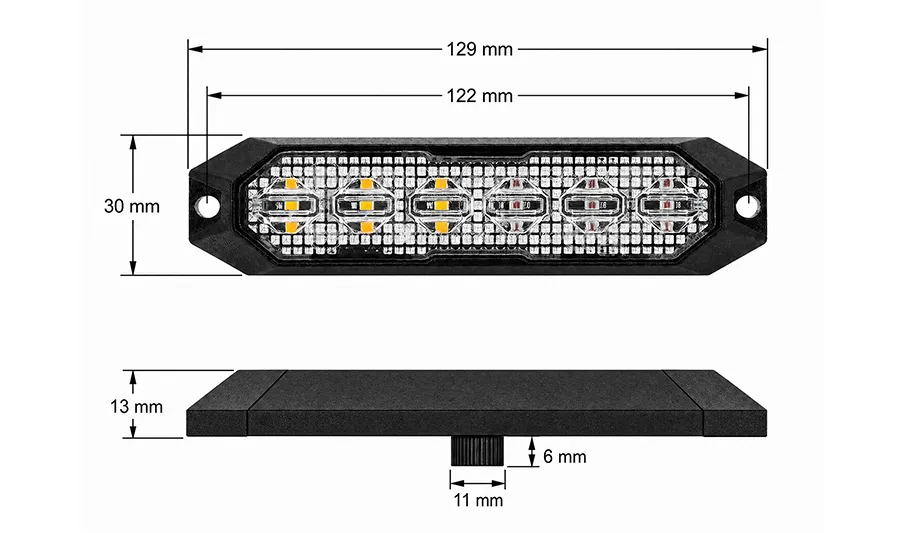

Dimensions (L x W x H)	129 mm x 30 mm x 13 mm
Housing Material	PC (Polycarbonate) Lens + Die-Cast Aluminum Base
Power Consumption	18 W
Operating Voltage	DC 12 V - 24 V
Flash Modes	9 Selectable (Alternating, Synchronized, Asynchronous)
Memory Function	Yes - Recalls Last Mode After Power Cycle
Ingress Protection	IP6K9K (Dust-Tight, High-Pressure / Steam-Jet Proof)
Certifications / Standards	ECE R10, CE, SAE J595 Class1
Operating Temperature	-30 C to +50 C
Cable Length	15 cm
Warranty	3 Years
Customization (MOQ 500 Units)	Custom Logo, Packaging, Cable Length, Flash Patterns
Manufacturer Certifications	IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25

Why Choose Sumbexauto

Advantage	Detail
Manufacturing Experience	18+ Years
Quality Certification	IATF 16949 & ISO 9001
Defect Rate	Below 0.2%
On-Time Delivery	100%
Warranty	Up to 3 Years
R&D Capability	6-8 New Designs per Year, Over 100 Patents
OEM / ODM	Fast Response, Custom Logo, Packaging & Specifications
Testing Equipment	Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration
