Heavy-Duty Rotating Warning Beacon with IP66, DC 12-24V, Flexible Pipe, Magnetic & Bolt Mount O

Name: SM804AH-SM804HH H Series High Profile LED Beacon (ECE R65,ECE R10)
Brand: Guangzhou Jinniuda Lighting Co., Ltd.

ECE R65 / ECE R10 120 Rotations/Min IP66 Waterproof 16 × 3W High-Power LEDs DC 12-24V 9 Mount Types Available Cover: 126×146mm -30°C to +50°C 3-Year Warranty

SM804H Series high profile beacon — 9 mounting options, all IP66 waterproof. All share a 126×146mm cover with 16 high-power 3W LEDs, ECE R65 120 rotations per minute, ECE R10 certified, and DC 12-24V wide voltage. Heights: AH (flexible pipe, 269mm), BH (pipe, 237mm), CH (flexible low pipe, 214mm), DH (flexible spigot base, 251mm), EH (single bolt, 226mm), GH (magnetic, 202mm), HH (magnetic/3 bolts, 198mm), IH (flexible & permanent, 293mm), PH (3 bolts, 184mm). Built for trucks, construction, agriculture, and emergency vehicles from -30°C to +50°C.

Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

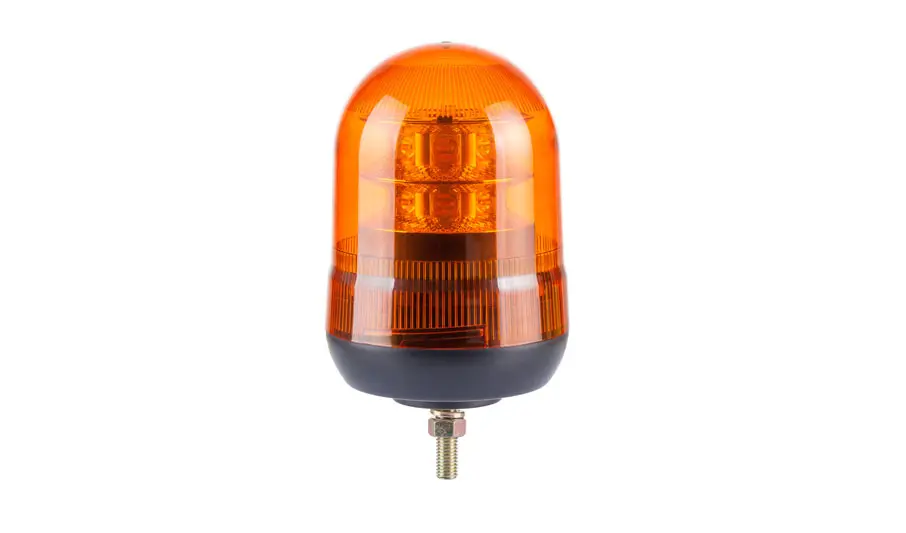

single bolt sm804eh

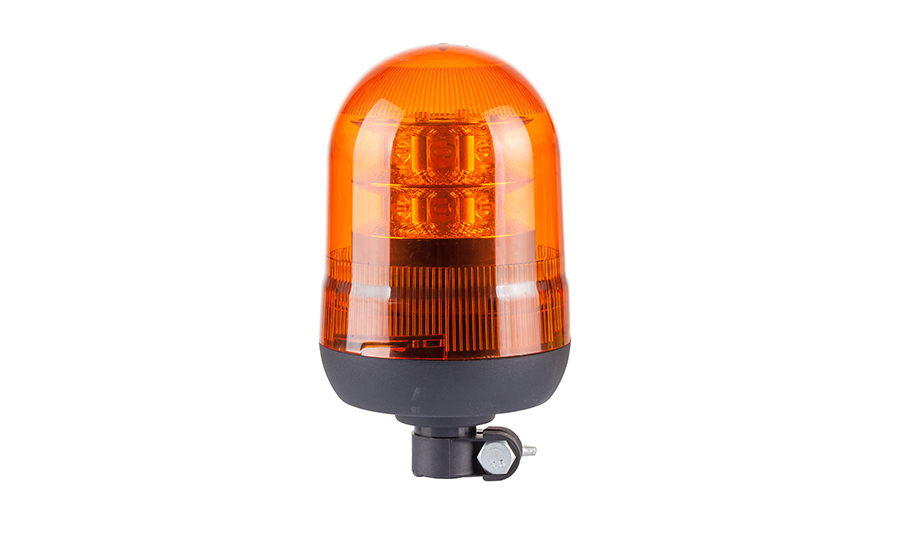

sm804ch

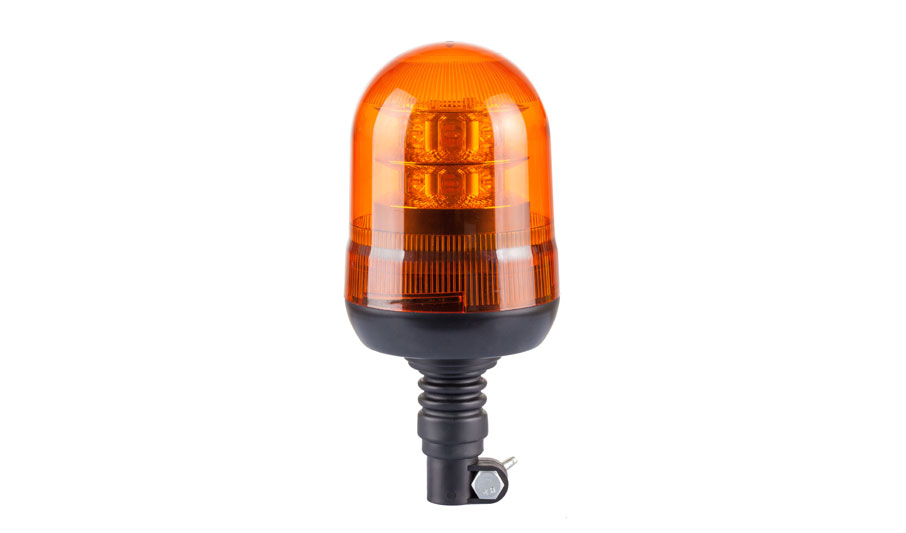

flexible sm804ah

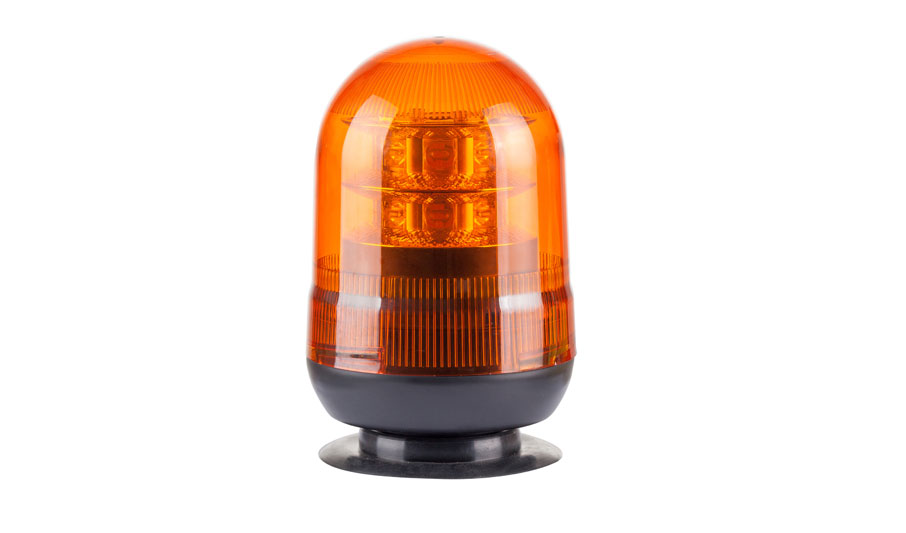

magentic sm804gh

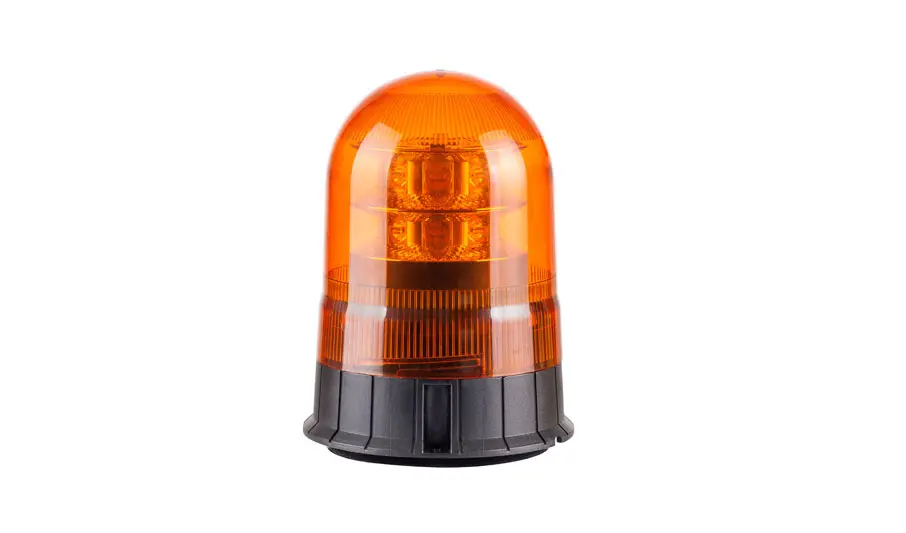

magentic and 3bolt sm804hh

Get a Quick Quote on Alibaba

The SM804H Series High Profile Beacon delivers commanding 360° rotating warning with 16 high-power 3W LEDs across 9 mounting configurations, all IP66 waterproof. All models feature ECE R65 120 rotations per minute and ECE R10 certified, providing powerful visibility for the most demanding applications.

Uniform 126×146mm cover, heights from 184mm to 293mm. Available in flexible pipe (AH), pipe (BH), flexible low pipe (CH), flexible spigot base (DH), single bolt (EH), magnetic (GH), magnetic/3 bolts (HH), flexible & permanent (IH), and 3-bolt (PH) mounts. Operates from -30°C to +50°C on trucks, construction, mining, agriculture, and emergency vehicles.

SM804H Series Models (Cover: 126×146mm | 16×3W LEDs | ECE R65/R10 | IP66 | DC 12-24V)

Model	Mount Type	Height	Flash	Voltage	Cert.
SM804AH	Flexible Pipe Mount	269mm	120 RPM	DC 12-24V	R65/R10
SM804BH	Pipe Mount	237mm	120 RPM	DC 12-24V	R65/R10
SM804CH	Flexible Low Pipe Mount	214mm	120 RPM	DC 12-24V	R65/R10
SM804DH	Flexible Spigot Base	251mm	120 RPM	DC 12-24V	R65/R10
SM804EH	Single Bolt Mount	226mm	120 RPM	DC 12-24V	R65/R10
SM804GH	Magnetic Mount	202mm	120 RPM	DC 12-24V	R65/R10
SM804HH	Magnetic / 3 Bolt Mount	198mm	120 RPM	DC 12-24V	R65/R10
SM804IH	Flexible & Permanent Mount	293mm	120 RPM	DC 12-24V	R65/R10
SM804PH	3 Bolt Mount	184mm	120 RPM	DC 12-24V	R65/R10

OEM / ODM Ready (MOQ 500 units): Custom logo, packaging, cable length, and flash patterns. Supported by our IATF 16949 & ISO 9001 certified factory with 18+ years of experience. Defect rate below 0.2%, 100% on-time delivery.

Technical Specifications (All Models)

Parameter	Specification
Product Series	SM804H High Profile Beacon (9 Models)
LED Configuration	16 × 3W High-Power LEDs
Flash Mode	ECE R65 120 Rotations per Minute
Cover Dimensions	126mm × 146mm (All Models)
Heights	AH:269 / BH:237 / CH:214 / DH:251 / EH:226 / GH:202 / HH:198 / IH:293 / PH:184 (mm)
Operating Voltage	DC 12 V - 24 V
Certifications	ECE R65, ECE R10
Ingress Protection	IP66 Waterproof (All Models)
Operating Temperature	-30°C to +50°C
Mount Options	Flexible Pipe / Pipe / Flexible Low Pipe / Flexible Spigot / Single Bolt / Magnetic / Magnetic+3 Bolts / Flexible+Permanent / 3 Bolts
Warranty	3 Years
Customization (MOQ 500 Units)	Custom Logo, Packaging, Cable Length, Flash Patterns
Manufacturer Certifications	IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25

Download Datasheet (PDF)

Click the button, then select "Save as PDF" in the print dialog to download.

Why Choose Sumbexauto

Advantage	Detail
Manufacturing Experience	18+ Years
Quality Certification	IATF 16949 & ISO 9001
Defect Rate	Below 0.2%
On-Time Delivery	100%
Warranty	Up to 3 Years
R&D Capability	6-8 New Designs per Year, Over 100 Patents
OEM / ODM	Fast Response, Custom Logo, Packaging & Specifications
Testing Equipment	Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration
