SM820AP-SM820PP P Series Flat Top LED strobe beacons(ECE R65)

SMBX SM820 P Series of lens are designed for Flat Top mount, which are made of high-quality PC dome and top level LED for brighter light source. 3Flashes Patterns: ECE R65 TA1 Flash, ECE R10 double Flash, ECE R10 Double Flash.


Flexible/ DIN Mount Mounting:

These beacons are designed for pipe mounting. Plug the beacon in the DIN adapter,

place on the pipe and tighten the wing nut. Make sure that the DIN bracket/pipe is perfectly vertical.

DIN adapter mounts to vehicle allowing removal/installation without tools.

When the beacon is removed, always close the adapter socket outlet.

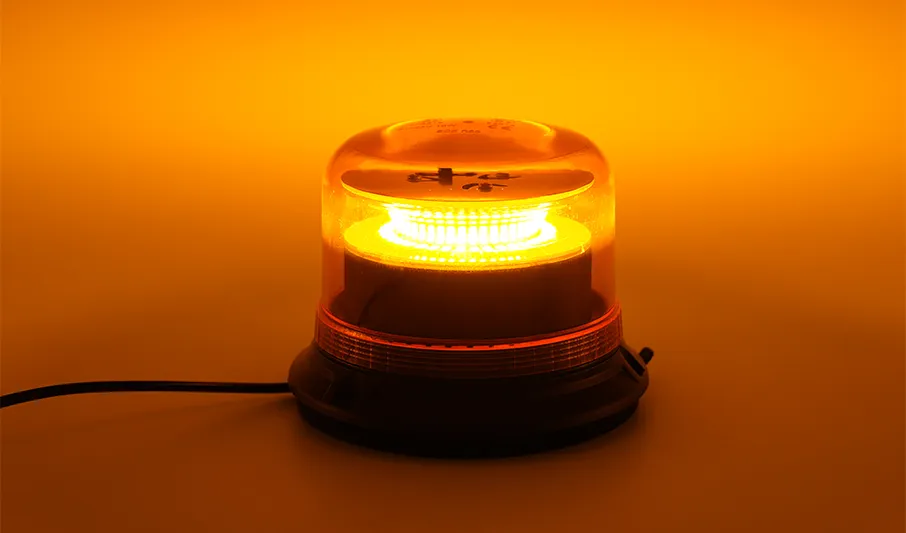

Magnetic Mounting:

Magnetic mount beacons are intended to install on the roof of the vehicle.

The mounting surface must be flat, dry and clean to ensure good adherence. Place and remove the beacon without sliding to avoid scratching.

To operate the magnet-mounted beacon, plug in the power cable into the cigarette lighter socket.



3-Bolt mounting :

Drill mounting holes using the beacon base as a template. Please observe the wire routing when planning

the installation location for the beacon. Make sure that the area is free from any electrical wires, vehicle upholstery, etc. that could be

damaged. Fix the beacon with screws and black foam protection.

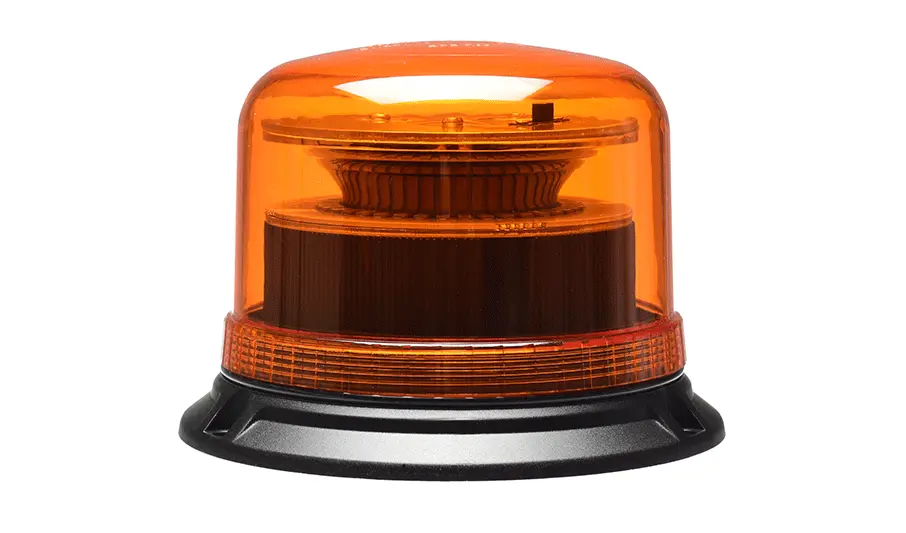

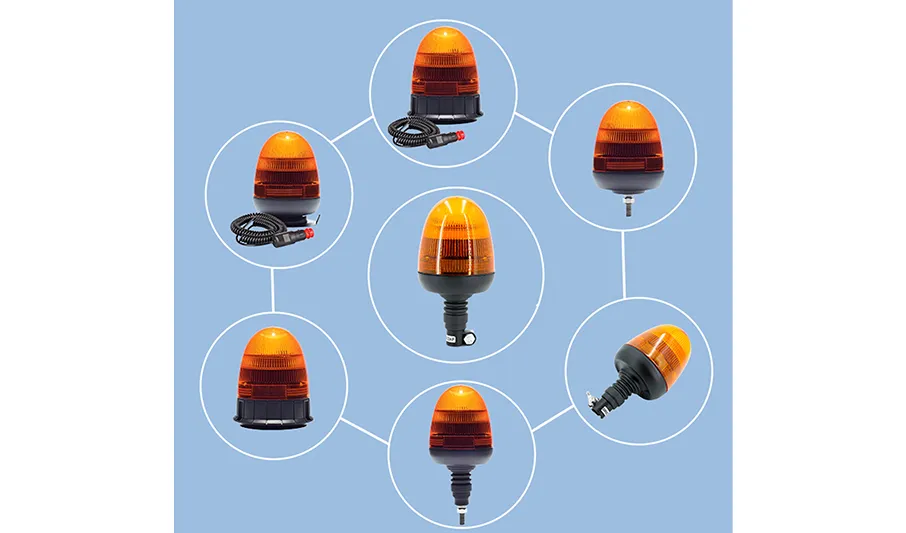

  • 3Bolts  SM820PP
    3Bolts SM820PP

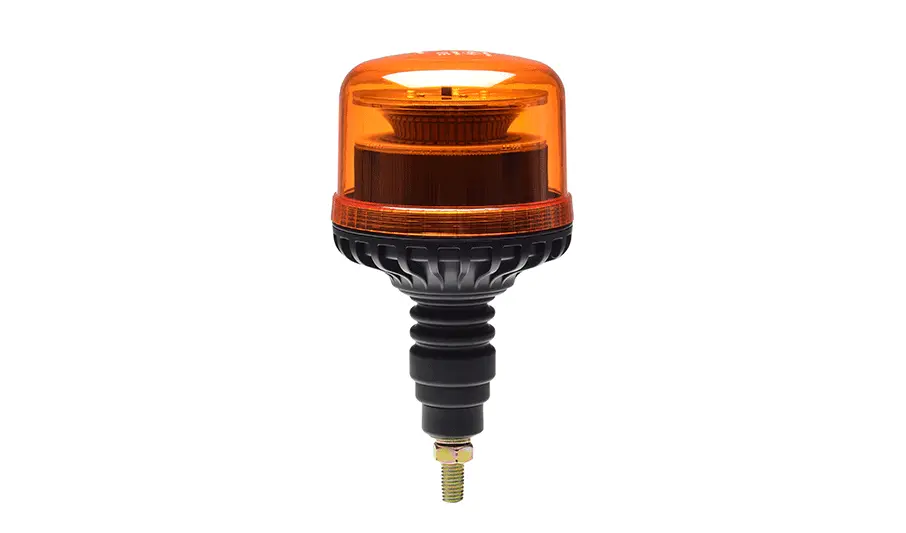

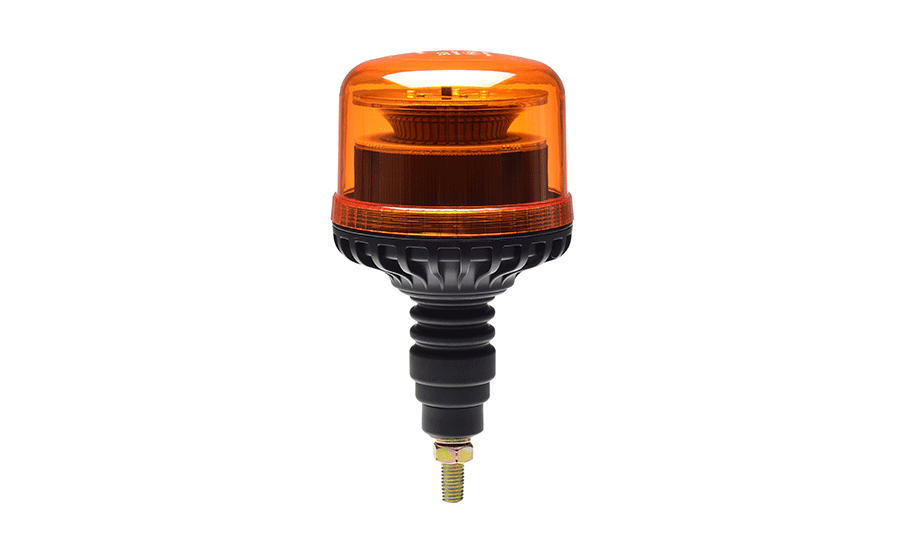

  • Flexible & Permanent SM820IP
    Flexible & Permanent SM820IP

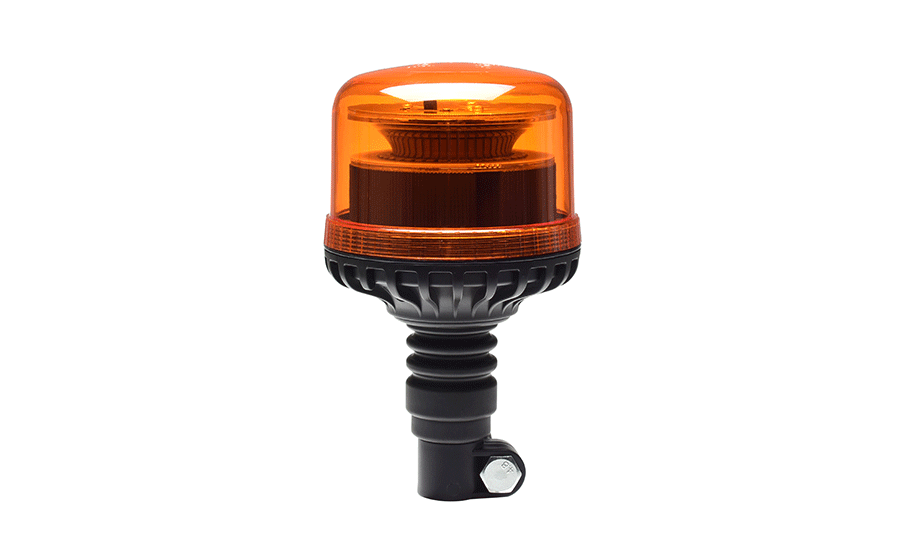

  • Flexible SM820AP
    Flexible SM820AP

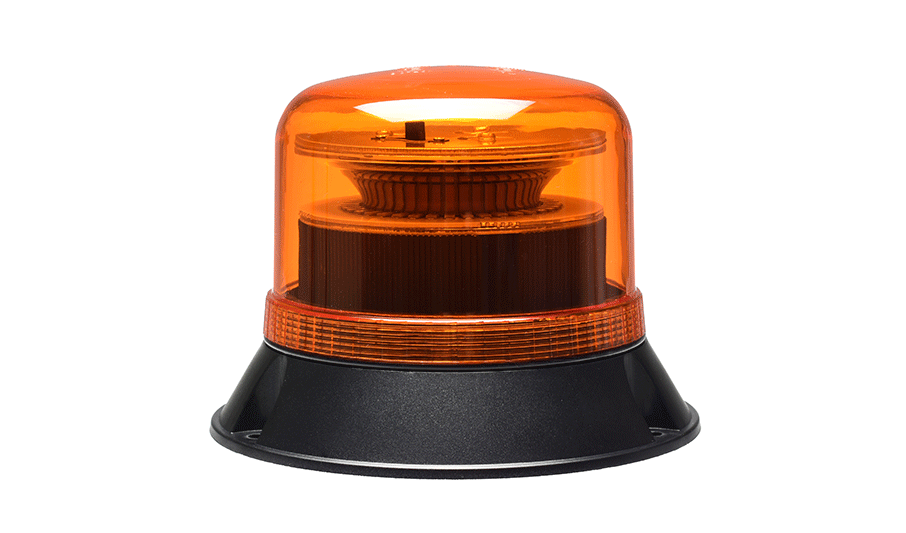

  • ISO base SM820MP
    ISO base SM820MP

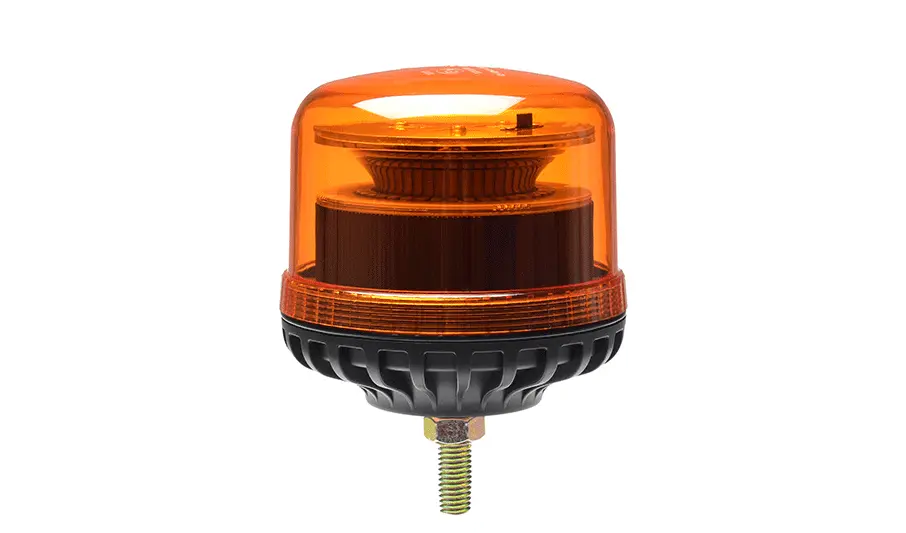

  • Magnetic 3bolts SM820EP
    Magnetic 3bolts SM820EP

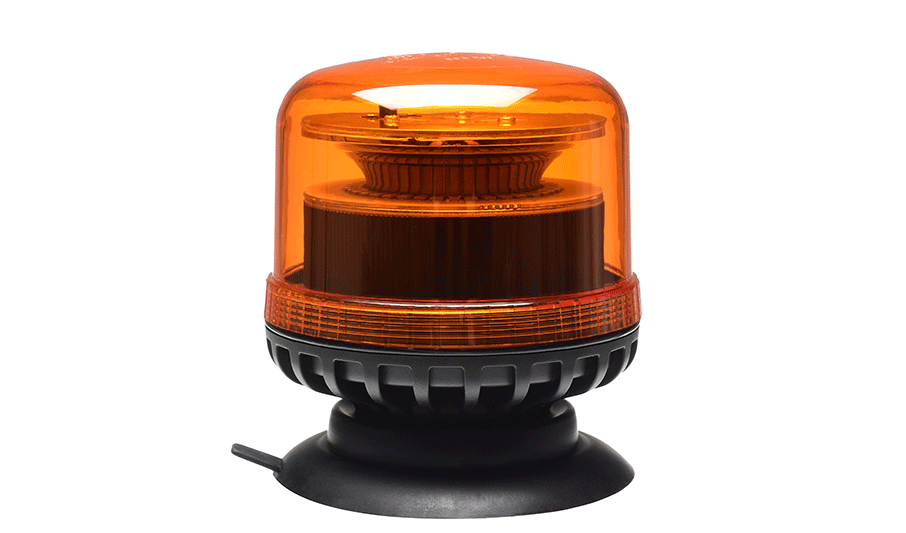

  • Magnetic SM820GP
    Magnetic SM820GP

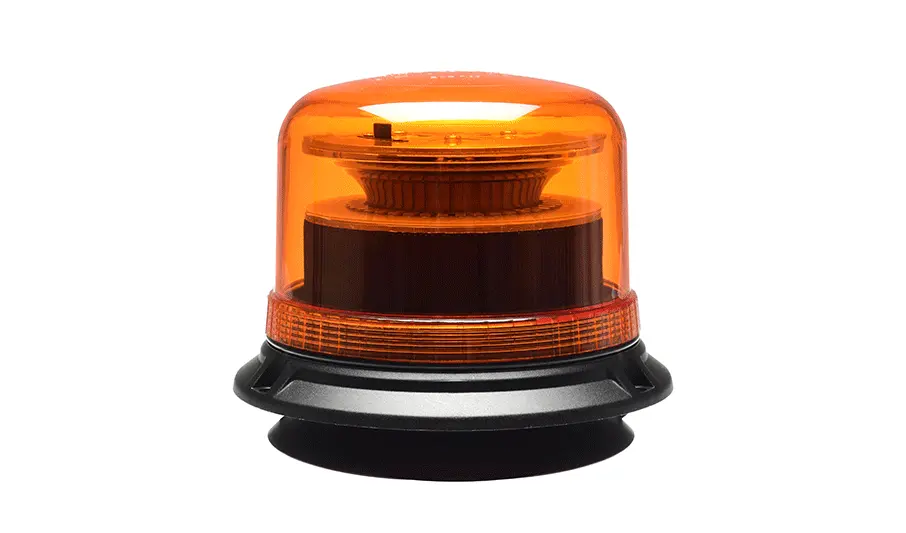

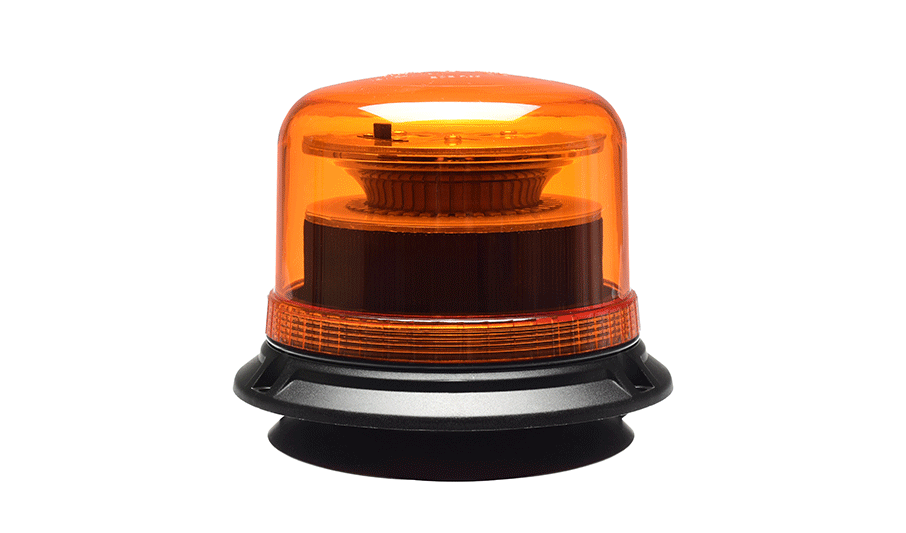

  • Magnetic SM820HP
    Magnetic SM820HP
  • 3Bolts  SM820PP
  • Flexible & Permanent SM820IP
  • Flexible SM820AP
  • ISO base SM820MP
  • Magnetic 3bolts SM820EP
  • Magnetic SM820GP
  • Magnetic SM820HP

Features of SM820AP-SM820PP  P Series Flat Top LED strobe beacons(ECE R65)


  • Meets: ECE R65, ECE R10, EMC, IP65, RoHS

  • Power: 39pcs super bright LEDs

  • Operating Voltage: DC 12~24V

  • Temperature: -30°C to + 50°C temperature range


Applications of SM820AP-SM820PP  P Series Flat Top LED strobe beacons(ECE R65)

The SM820 P series Flat Top LED Strobe Beacons meet the needs from different vehicles’. Such as farming tractors, Metro, industry trucks, snow shovel vehicles, emergency ambulance, transportation bus, large size trucks, construction forklift etc.
