Green LED Magnetic Warning Light with 8 Flash Patterns, DC 12-24V, 3M Cigar Plug Wire for Quick Inst

SAE J845 Class 3 E9 Approved IP66 Waterproof 32 High-Power LEDs 8 Flash Patterns DC 12-24V 3M Wire + Cigar Plug Cover: 104×70mm 3-Year Warranty

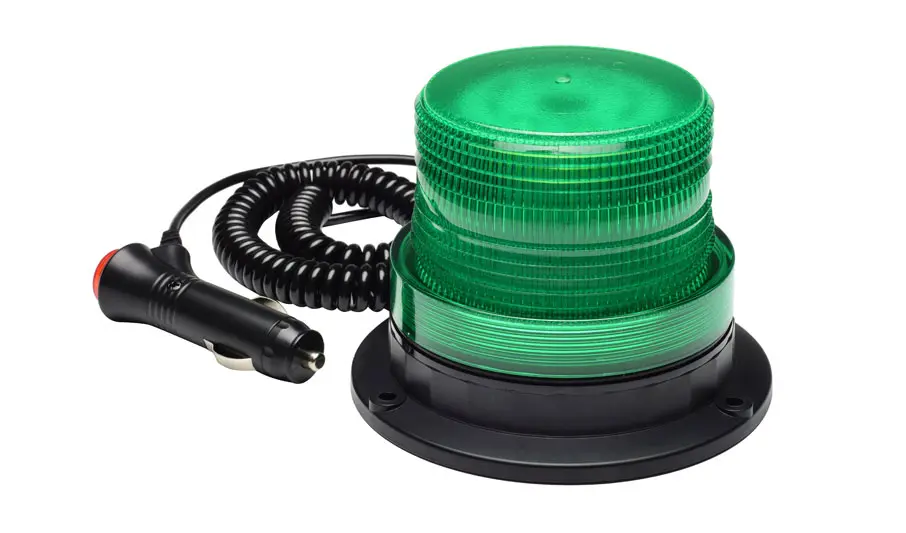

SM807SG Magnetic Mount Warning Beacon — SAE J845 Class 3 and E9 approved, featuring 32 high-power LEDs, 8 selectable flash patterns, and IP66 waterproof protection. Compact cover dimensions of 104×70mm (overall 129×97mm), DC 12-24V wide voltage, 3-meter wire with cigar plug and magnetic mount for quick installation. Green LED provides excellent visibility for turn signals and safety warning. Built for trucks, construction, agriculture, and emergency vehicles from -30°C to +50°C.

Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

green flashing beacon lights sae j845

Get a Quick Quote on Alibaba

The SM807SG Magnetic Mount Warning Beacon delivers powerful warning performance with 32 high-power LEDs, SAE J845 Class 3 certified and E9 approved. Featuring 8 selectable flash patterns, IP66 waterproof protection, and wide DC 12-24V voltage compatibility, this beacon is built for professional-grade safety applications.

The compact cover measures 104×70mm with overall dimensions of 129×97mm. The 3-meter wire with cigar plug and magnetic mount enables quick installation and relocation. Green LED output provides excellent daytime visibility for turn signals, safety warning, and industrial applications. Operates reliably from -30°C to +50°C. Ideal for trucks, construction vehicles, agricultural machinery, and emergency response units requiring portable warning solutions.

OEM / ODM Ready (MOQ 500 units): Custom logo, packaging, cable length, and flash patterns. Supported by our IATF 16949 & ISO 9001 certified factory with 18+ years of experience. Defect rate below 0.2%, 100% on-time delivery.

Technical Specifications

Parameter	Specification
Product Model	SM807SG
Product Type	Magnetic Mount Warning Beacon
LED Configuration	32 High-Power LEDs
Flash Patterns	8 Selectable Patterns
Cover Dimensions	104mm × 70mm
Overall Dimensions	129mm × 97mm
Mount Type	Magnetic Mount
Wiring	3 Meters Wire with Cigar Plug
Operating Voltage	DC 12 V - 24 V
Certifications	SAE J845 Class 3, E9 Approved
Ingress Protection	IP66 Waterproof
Light Color	Green
Operating Temperature	-30°C to +50°C
Warranty	3 Years
Customization (MOQ 500 Units)	Custom Logo, Packaging, Cable Length, Flash Patterns
Manufacturer Certifications	IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25

Download Datasheet (PDF)

Click the button, then select "Save as PDF" in the print dialog to download.

Why Choose Sumbexauto

Advantage	Detail
Manufacturing Experience	18+ Years
Quality Certification	IATF 16949 & ISO 9001
Defect Rate	Below 0.2%
On-Time Delivery	100%
Warranty	Up to 3 Years
R&D Capability	6-8 New Designs per Year, Over 100 Patents
OEM / ODM	Fast Response, Custom Logo, Packaging & Specifications
Testing Equipment	Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration

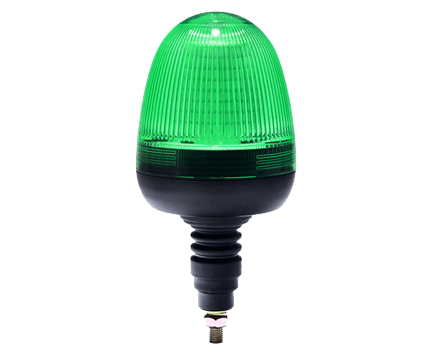

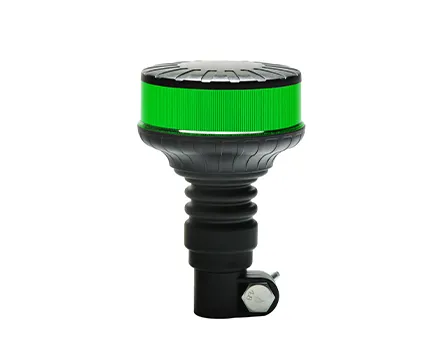

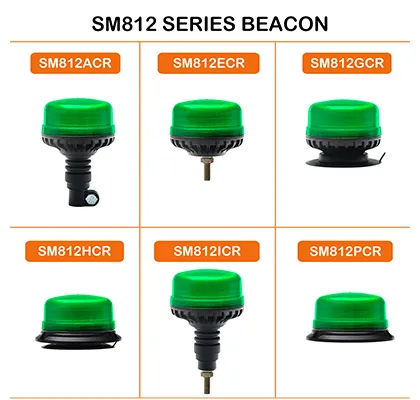

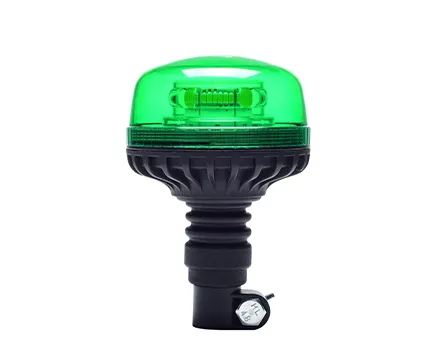

Related ECE R10 Green LED Beacon
