SM802H Series micro beacon — 9 mounting options, all IP66 waterproof. All models share a 126×119mm cover with 8 high-power 3W LEDs, ECE R65 120 flashes per minute (360° revolving flash / intermittent flash), ECE R10 certified, and DC 12-24V wide voltage. Heights: AH (flexible pipe, 244mm), BH (pipe, 210mm), CH (flexible low, 187mm), DH (flexible spigot base, 224mm), EH (single bolt, 198mm), GH (magnetic, 175mm), HH (magnetic/3 bolts, 170mm), IH (flexible & permanent low profile, 265mm), PH (3 bolts, 156mm). Built for trucks, construction, agriculture, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The SM802H Series Micro Beacon delivers versatile 360° warning performance with 8 high-power 3W LEDs across 9 mounting configurations — all IP66 waterproof. All models feature ECE R65 120 flashes per minute with both revolving and intermittent flash modes, ECE R10 certified, and wide DC 12-24V voltage compatibility.
Uniform 126×119mm cover, heights from 156mm to 265mm. Available in flexible pipe (AH), pipe (BH), flexible low (CH), flexible spigot base (DH), single bolt (EH), magnetic (GH), magnetic/3 bolts (HH), flexible & permanent low profile (IH), and 3-bolt (PH) mounts. Operates from -30°C to +50°C. Ideal for trucks, construction, agriculture, forklifts, and emergency vehicles.
| Model | Mount Type | Height | Flash Mode | Certification |
|---|---|---|---|---|

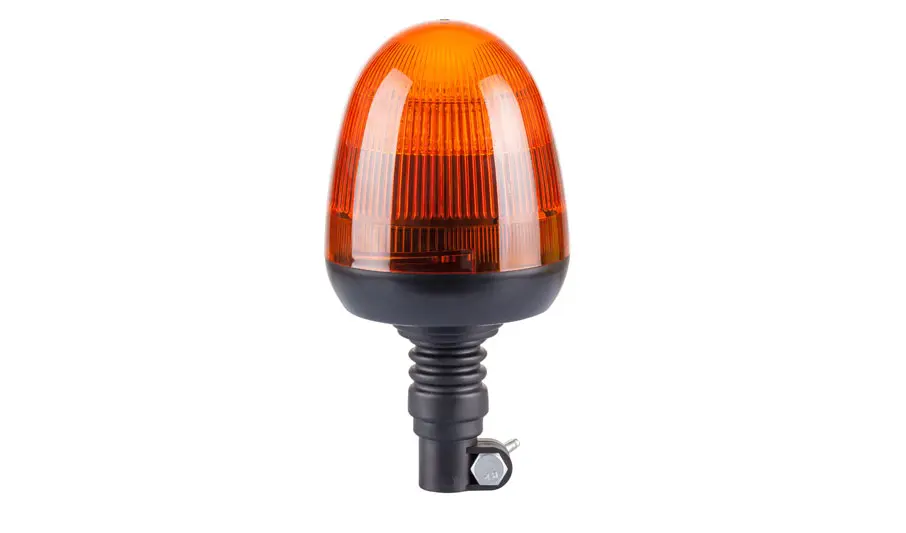

| SM802AH | Flexible Pipe Mount | 244mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| SM802BH | Pipe Mount | 210mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| SM802CH | Flexible Low Mount | 187mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| SM802DH | Flexible Spigot Base | 224mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |

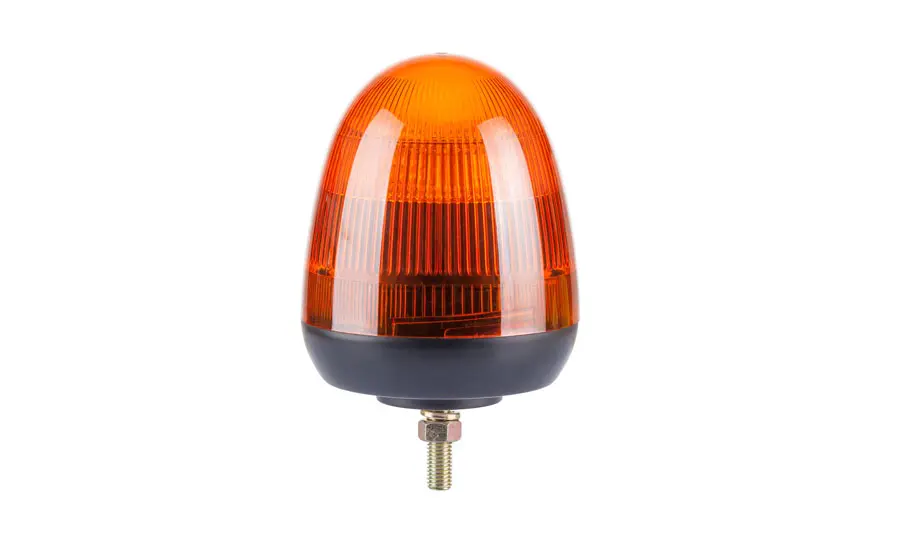

| SM802EH | Single Bolt Mount | 198mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |

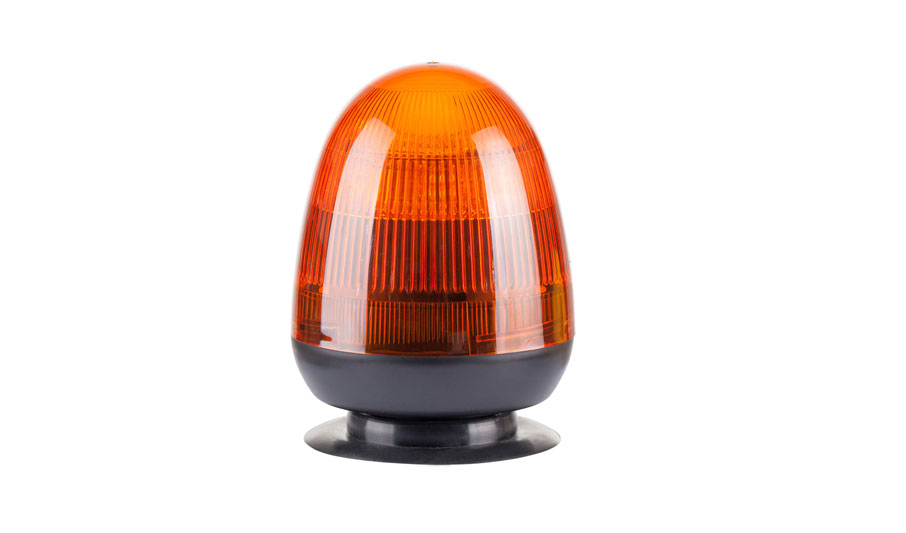

| SM802GH | Magnetic Mount | 175mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |

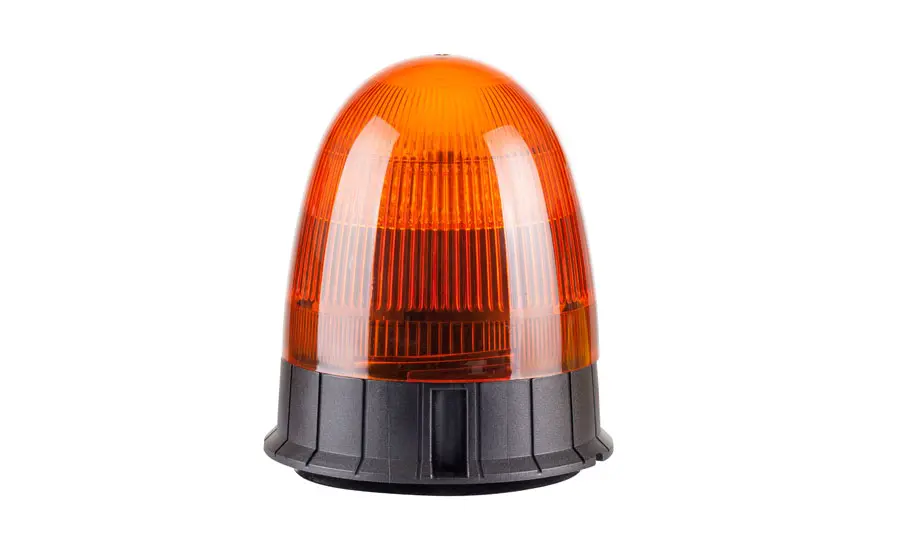

| SM802HH | Magnetic / 3 Bolts Mount | 170mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| SM802IH | Flexible & Permanent Low Profile | 265mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| SM802PH | 3 Bolts Mount | 156mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| Parameter | Specification |
|---|---|
| Product Series | SM802H Micro Beacon (9 Models) |
| LED Configuration | 8 × 3W High-Power LEDs |
| Flash Modes | 360° Revolving Flash / Intermittent Flash |
| Flash Rate | ECE R65 120 Flashes per Minute |
| Cover Dimensions | 126mm × 119mm (All Models) |
| Heights | AH:244 / BH:210 / CH:187 / DH:224 / EH:198 / GH:175 / HH:170 / IH:265 / PH:156 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Pipe / Flexible Low / Flexible Spigot / Single Bolt / Magnetic / Magnetic+3 Bolts / Low Profile / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
