The SM812G Series Micro Beacon delivers reliable warning performance with 36 super bright LEDs across 6 compact mounting configurations — all IP66 waterproof. The EC model is ECE R65 and ECE R10 certified for full European compliance; all other models are ECE R10 certified. Wide DC 12-24V voltage compatibility ensures universal vehicle fitment.
The uniform 114×52mm cover ensures consistent visibility, with heights from a compact 69mm to 191mm. Available in flexible pipe (AC), single bolt (EC), magnetic (GC), magnetic low profile (HC), flexible & permanent (IC), and 3-bolt compact (PC) mounts. Green LED option available for turn signals, safety warning, and industrial applications. All operate reliably from -30°C to +50°C. Ideal for trucks, construction vehicles, forklifts, agricultural machinery, and emergency response units.
SM812G Series Models (Cover: 114×52mm | 36 LEDs | IP66 | DC 12-24V)
| Model | Mount Type | Height | Certification | Voltage |
|---|
| SM812G-AC | Flexible Pipe Mount | 166mm | ECE R10 | DC 12-24V |
| SM812G-EC | Single Bolt Mount | 124mm | ECE R65, ECE R10 | DC 12-24V |
| SM812G-GC | Magnetic Mount | 95mm | ECE R10 | DC 12-24V |
| SM812G-HC | Magnetic Mount (Low Profile) | 80mm | ECE R10 | DC 12-24V |
| SM812G-IC | Flexible & Permanent Mount | 191mm | ECE R10 | DC 12-24V |
| SM812G-PC | 3 Bolts Mount (Compact) | 69mm | ECE R10 | DC 12-24V |
OEM / ODM Ready (MOQ 500 units): Custom logo, packaging, cable length, and flash patterns. Supported by our IATF 16949 & ISO 9001 certified factory with 18+ years of experience. Defect rate below 0.2%, 100% on-time delivery.
Technical Specifications (All Models)
| Parameter | Specification |
|---|
| Product Series | SM812G Micro Beacon (6 Models) |
| LED Configuration | 36 Super Bright LEDs |
| Cover Dimensions | 114mm × 52mm (All Models) |

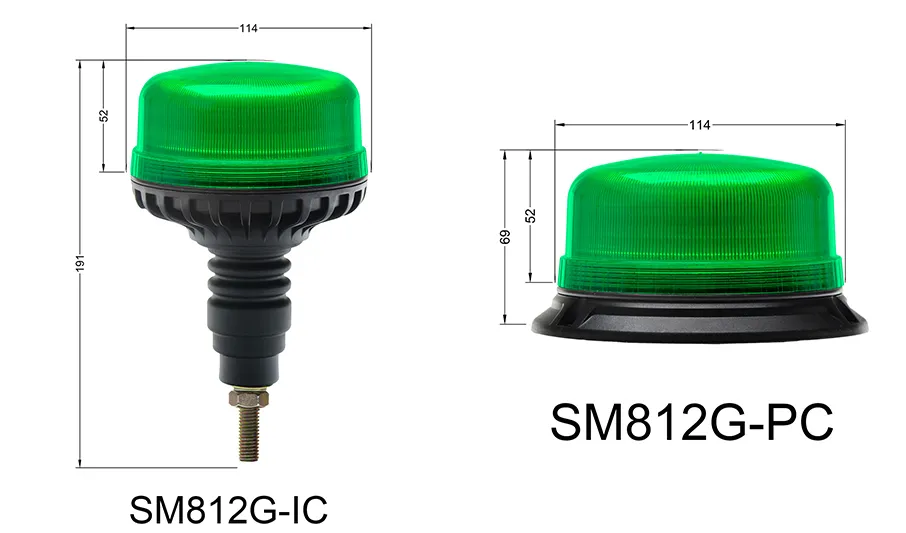

| Heights | AC:166 / EC:124 / GC:95 / HC:80 / IC:191 / PC:69 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R10 (All Models) | ECE R65 (EC Model) |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Single Bolt / Magnetic / Magnetic Low Profile / Flexible & Permanent / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
Why Choose Sumbexauto
| Advantage | Detail |
|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
