ECE R65 R10 High Profile LED Beacon

Design of 16PCSX3W High Profile Beacon to make your vehicle visible from all angles and maximize safety.
Approval ECE R65 ECE R10
Compared with low profile beacon, high pfofile one intends to be obvious in complex environment.
3 Flashes patterns: Single Flash, Double Flash, Rotation.

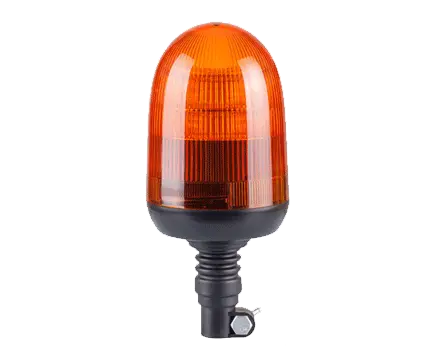

SM801AH-SM801HH H series High Profile LED Beacon (ECE R65,ECE R10)

SM801AH-SM801HH H series High Profile LED Beacon (ECE R65,ECE R10)

The SM801H Series high profile beacon delivers commanding 360° rotating warning with 16 high-power 3W LEDs across 9 mounting configurations — all IP66 waterproof. All models feature ECE R65 120 rotations per minute and ECE R10 certified, providing powerful visibility for the most demanding applications. Choose from flexible pipe (AH, 277mm), pipe (BH, 245mm), flexible low pipe (CH, 222mm), flexible spigot base (DH, 259mm), single bolt (EH, 233mm), magnetic (GH, 210mm), magnetic/3 bolts (HH, 205mm), flexible & permanent (IH, 300mm), or 3-bolt (PH, 191mm). Uniform 126×154mm cover. Operates from -30°C to +50°C on trucks, construction vehicles, agricultural machinery, mining equipment, and emergency response units.

VIEW MORE

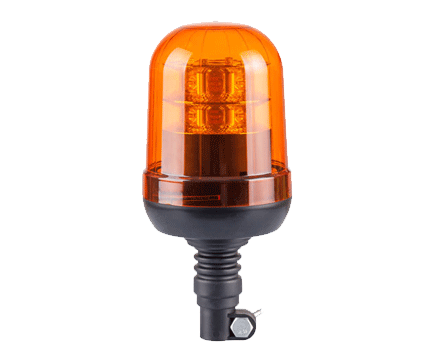

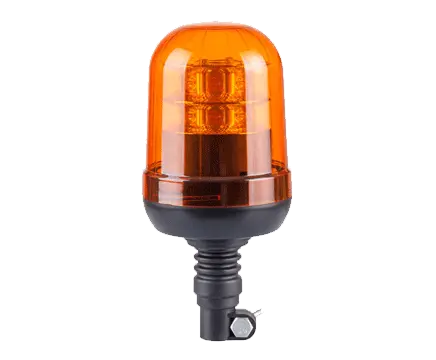

SM803AH-SM803HH H Series High Profile LED Beacon (ECE R65,ECE R10)

SM803AH-SM803HH H Series High Profile LED Beacon (ECE R65,ECE R10)

The SM803H Series high profile beacon delivers commanding 360° rotating warning with 16 high-power 3W LEDs across 9 mounting configurations — all IP66 waterproof. All models feature ECE R65 120 rotations per minute and ECE R10 certified, providing powerful visibility for the most demanding applications. Choose from flexible pipe (AH, 269mm), pipe (BH, 234mm), flexible low pipe (CH, 214mm), flexible spigot base (DH, 246mm), single bolt (EH, 225mm), magnetic (GH, 195mm), magnetic/3 bolts (HH, 194mm), flexible & permanent (IH, 290mm), or 3-bolt (PH, 185mm). Uniform 126×144mm cover. Operates from -30°C to +50°C on trucks, construction vehicles, agricultural machinery, mining equipment, and emergency response units.

VIEW MORE

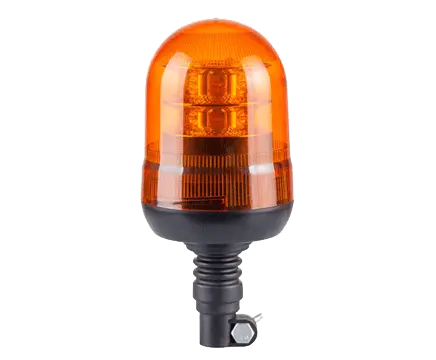

SM804AH-SM804HH H Series High Profile LED Beacon (ECE R65,ECE R10)

SM804AH-SM804HH H Series High Profile LED Beacon (ECE R65,ECE R10)

The SM804H Series high profile beacon delivers commanding 360° rotating warning with 16 high-power 3W LEDs across 9 mounting configurations — all IP66 waterproof. All models feature ECE R65 120 rotations per minute and ECE R10 certified, providing powerful visibility for the most demanding applications. Choose from flexible pipe (AH, 269mm), pipe (BH, 237mm), flexible low pipe (CH, 214mm), flexible spigot base (DH, 251mm), single bolt (EH, 226mm), magnetic (GH, 202mm), magnetic/3 bolts (HH, 198mm), flexible & permanent (IH, 293mm), or 3-bolt (PH, 184mm). Uniform 126×146mm cover. Operates from -30°C to +50°C on trucks, construction vehicles, agricultural machinery, mining equipment, and emergency response units.

VIEW MORE

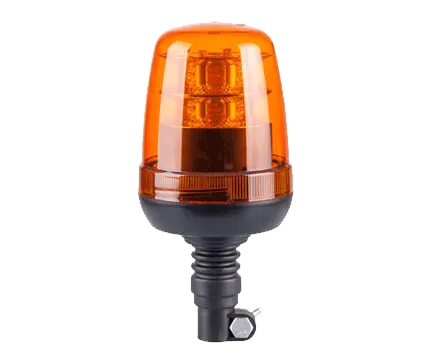

SM810AH-SM810HH H Series High Profile LED Beacon (ECE R65,ECE R10)

SM810AH-SM810HH H Series High Profile LED Beacon (ECE R65,ECE R10)

The SM810H Series high profile beacon delivers professional-grade 360° warning with 16 high-power 3W LEDs across 9 mounting configurations — all IP66 waterproof. Select models (AH, CH, EH, GH, HH, IH, PH) feature ECE R65 rotating, one pulse, and two pulses flash modes; BH and DH offer 120 rotations per minute. GH, HH, IH, and PH models carry ECE R65 TA1 certification for enhanced compliance. Choose from flexible pipe (AH, 260mm), pipe (BH, 226mm), low DIN (CH, 203mm), flexible spigot (DH, 240mm), single bolt (EH, 214mm), magnetic (GH, 187mm), magnetic/3 bolts (HH, 186mm), flexible & permanent DIN (IH, 281mm), or 3-bolt (PH, 176mm). Uniform 126×135mm cover. Operates from -30°C to +50°C on trucks, construction, mining, agriculture, and emergency vehicles.

VIEW MORE
