SM810H Series high profile beacon — 9 mounting options, all IP66 waterproof. All share a 126×135mm cover with 16 high-power 3W LEDs, ECE R65 and ECE R10 certified (TA1 on GH/HH/IH/PH). Select models (AH, CH, EH, GH, HH, IH, PH) offer rotating, one pulse, and two pulses flash modes; BH and DH feature 120 rotations per minute. Heights: AH (flexible pipe, 260mm), BH (pipe, 226mm), CH (low DIN, 203mm), DH (flexible spigot, 240mm), EH (single bolt, 214mm), GH (magnetic, 187mm), HH (magnetic/3 bolts, 186mm), IH (flexible & permanent DIN, 281mm), PH (3 bolts, 176mm). Built for trucks, construction, agriculture, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The SM810H Series High Profile Beacon delivers professional-grade warning performance with 16 high-power 3W LEDs across 9 mounting configurations — all IP66 waterproof. Select models (AH, CH, EH, GH, HH, IH, PH) feature ECE R65 rotating, one pulse, and two pulses flash modes; BH and DH offer 120 rotations per minute. GH, HH, IH, and PH models carry ECE R65 TA1 certification for enhanced compliance.
Uniform 126×135mm cover, heights from 176mm to 281mm. Available in flexible pipe (AH), pipe (BH), low DIN (CH), flexible spigot (DH), single bolt (EH), magnetic (GH), magnetic/3 bolts (HH), flexible & permanent DIN (IH), and 3-bolt (PH) mounts. All operate on DC 12-24V from -30°C to +50°C. Ideal for trucks, construction vehicles, agricultural machinery, mining equipment, and emergency response units.
| Model | Mount Type | Height | Flash Modes | Voltage | Cert. |
|---|---|---|---|---|---|

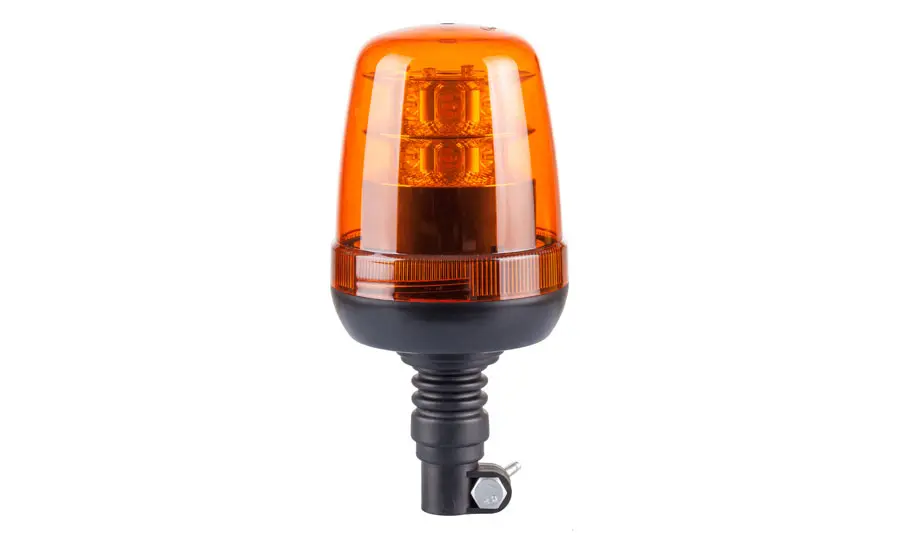

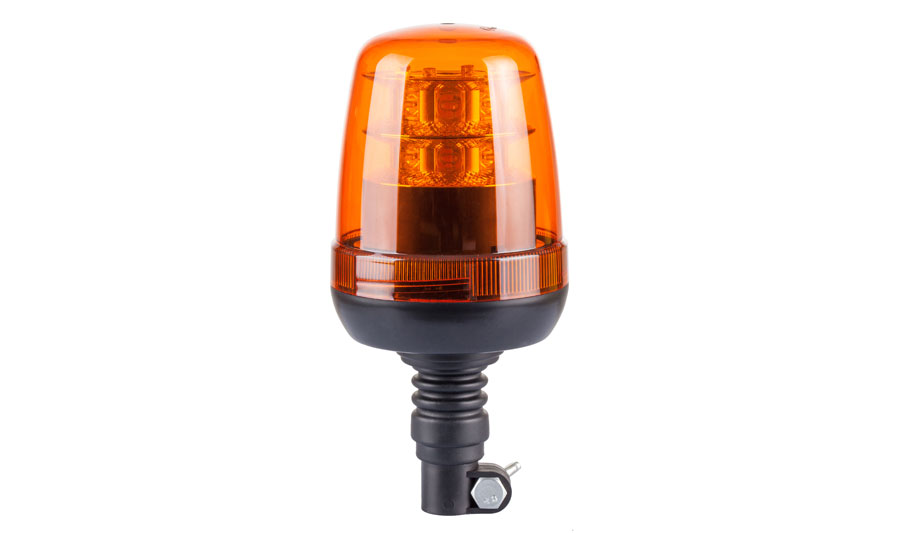

| SM810AH | Flexible Pipe Mount | 260mm | Rotating/1 Pulse/2 Pulses | DC 12-24V | R65/R10 |
| SM810BH | Pipe Mount | 226mm | 120 RPM | DC 12-24V | R65/R10 |

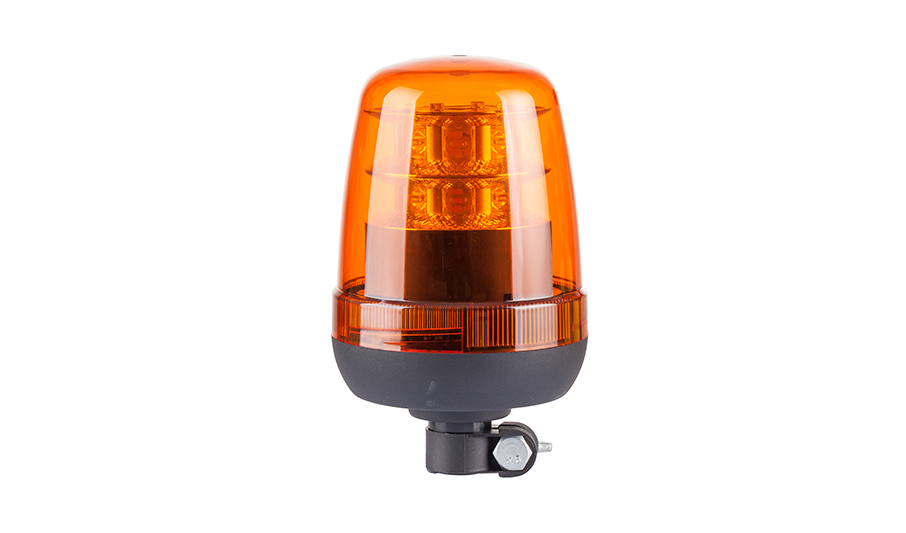

| SM810CH | Low DIN Mount | 203mm | Rotating/1 Pulse/2 Pulses | DC 12-24V | R65/R10 |
| SM810DH | Flexible Spigot Base | 240mm | 120 RPM | DC 12-24V | R65/R10 |

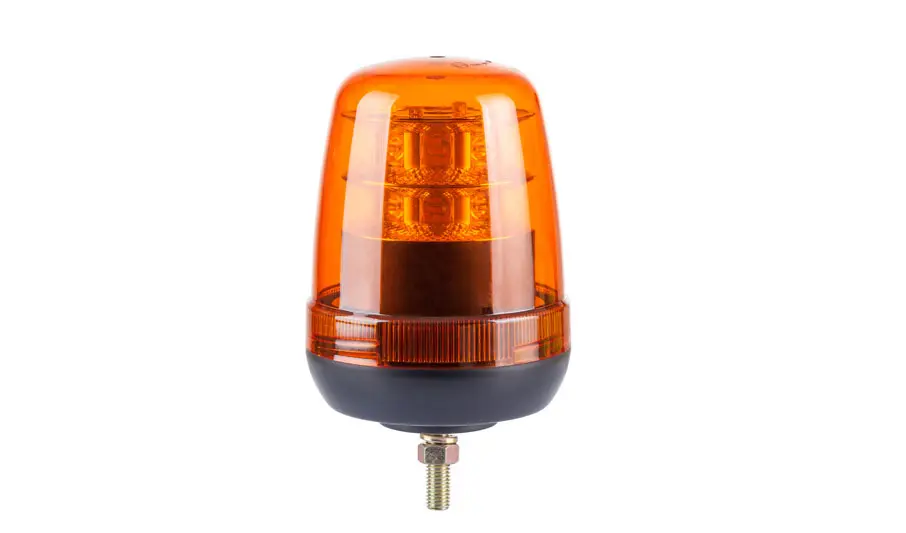

| SM810EH | Single Bolt Mount | 214mm | Rotating/1 Pulse/2 Pulses | DC 12-24V | R65/R10 |

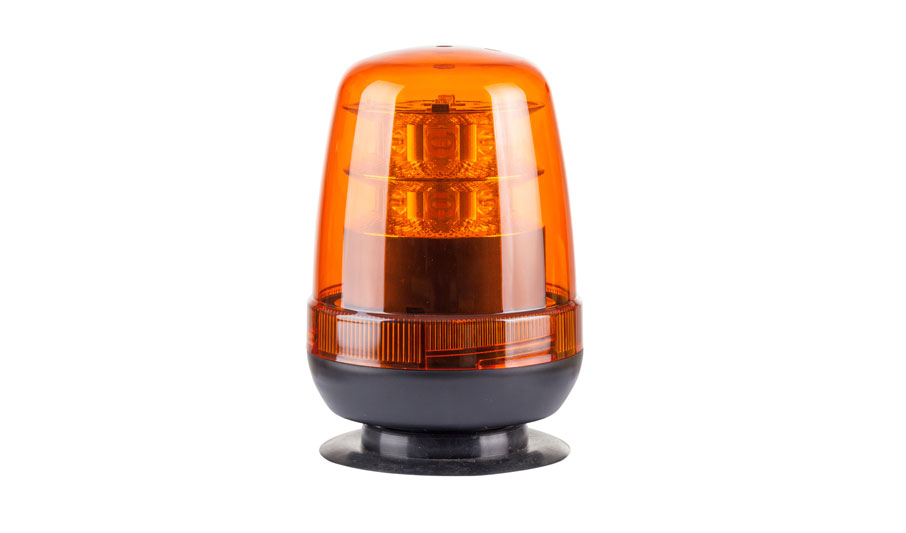

| SM810GH | Magnetic Mount | 187mm | Rotating/1 Pulse/2 Pulses | DC 12-24V | TA1/R10 |

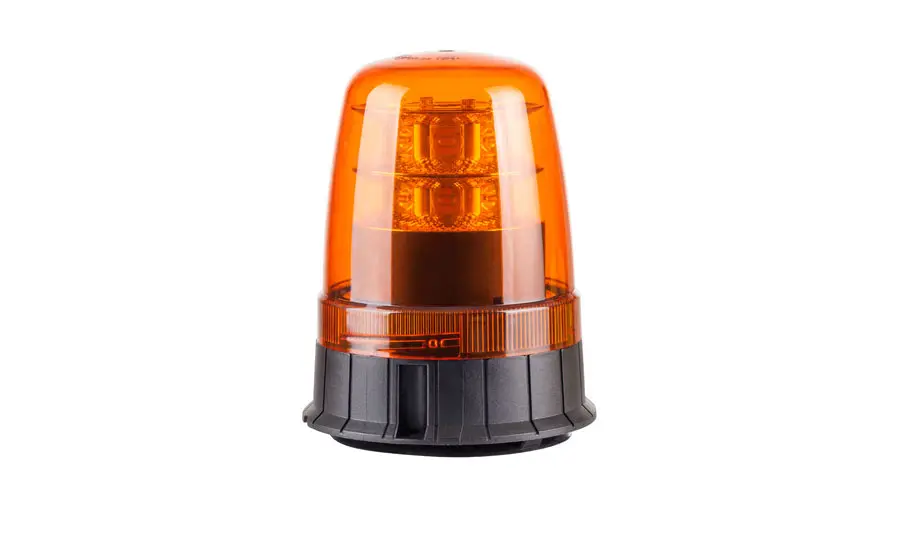

| SM810HH | Magnetic / 3 Bolts Mount | 186mm | Rotating/1 Pulse/2 Pulses | DC 12-24V | TA1/R10 |
| SM810IH | Flexible & Permanent DIN Mount | 281mm | Rotating/1 Pulse/2 Pulses | DC 12-24V | TA1/R10 |
| SM810PH | 3 Bolts Mount | 176mm | Rotating/1 Pulse/2 Pulses | DC 12-24V | TA1/R10 |
| Parameter | Specification |
|---|---|
| Product Series | SM810H High Profile Beacon (9 Models) |
| LED Configuration | 16 × 3W High-Power LEDs (GH: 16 Super Bright LEDs) |
| Flash Modes | Rotating / One Pulse / Two Pulses (BH/DH: 120 RPM) |
| Cover Dimensions | 126mm × 135mm (All Models) |
| Heights | AH:260 / BH:226 / CH:203 / DH:240 / EH:214 / GH:187 / HH:186 / IH:281 / PH:176 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65 (TA1: GH/HH/IH/PH), ECE R10 |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Pipe / Low DIN / Flexible Spigot / Single Bolt / Magnetic / Magnetic+3 Bolts / Flexible+Permanent DIN / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
