Heavy-Duty Steam-Jet Proof Green LED Warning Beacon with Aluminum Mount, PC Lens, DC 12-24V, Multipl

ECE R10 IP6K9K 36 High-Intensity LEDs DC 12-24V 5 Mount Types Available Heavy Duty Aluminum + PC Lens Multiple Sealed Cover: 93×33mm 3-Year Warranty

SM819G Series mini beacon — 5 mounting options, all IP6K9K steam-jet proof. All models share a 93×33mm cover with 36 high-intensity LEDs, ECE R10 certified, DC 12-24V wide voltage, heavy duty aluminum mount with PC lens, multiple sealed against moisture and dust. Heights: AC (flexible pipe, 142mm), EC (permanent, 96mm), HC (strong magnet, 55mm), IC (flexible & permanent, 165mm), PC (3 bolts, 46mm). Built for trucks, construction, mining, and emergency vehicles from -30°C to +50°C.

Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

Get a Quick Quote on Alibaba

The SM819G Series Mini Beacon delivers professional-grade warning performance in a compact, ultra-durable design. All 5 models feature 36 high-intensity LEDs, ECE R10 certified, with IP6K9K protection — fully dust-tight and capable of withstanding close-range high-pressure steam-jet cleaning. Heavy duty aluminum mount with PC lens for superior heat dissipation, multiple seals against moisture and dust ensure long-term reliability in the harshest environments.

The uniform 93×33mm cover ensures consistent visibility, with heights from an ultra-compact 46mm to 165mm. Available in flexible pipe (AC), permanent (EC), strong magnet (HC), flexible & permanent (IC), and 3-bolt compact (PC) mounts. Green LED option available for turn signals, safety warning, and industrial applications. All operate on DC 12-24V from -30°C to +50°C. Ideal for trucks, construction vehicles, mining equipment, agricultural machinery, and emergency response units.

SM819G Series Models (Cover: 93×33mm | 36 LEDs | ECE R10 | IP6K9K | DC 12-24V)

Model	Mount Type	Height	Certification	Voltage

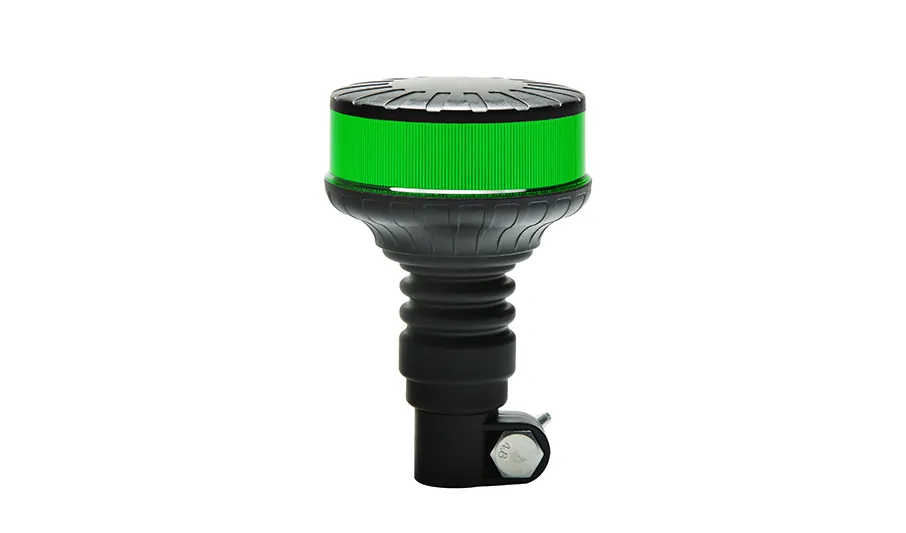

SM819G-AC	Flexible Pipe Mount	142mm	ECE R10	DC 12-24V

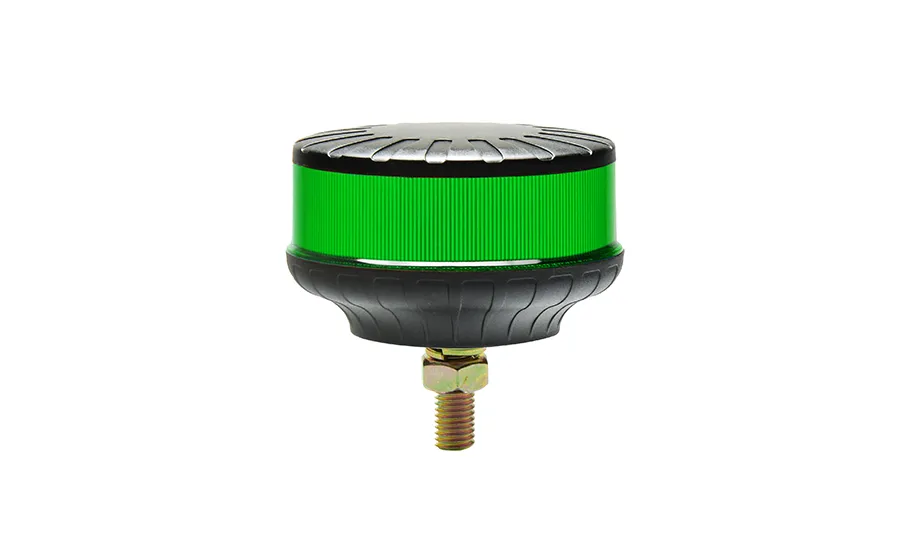

SM819G-EC	Permanent Mount	96mm	ECE R10	DC 12-24V

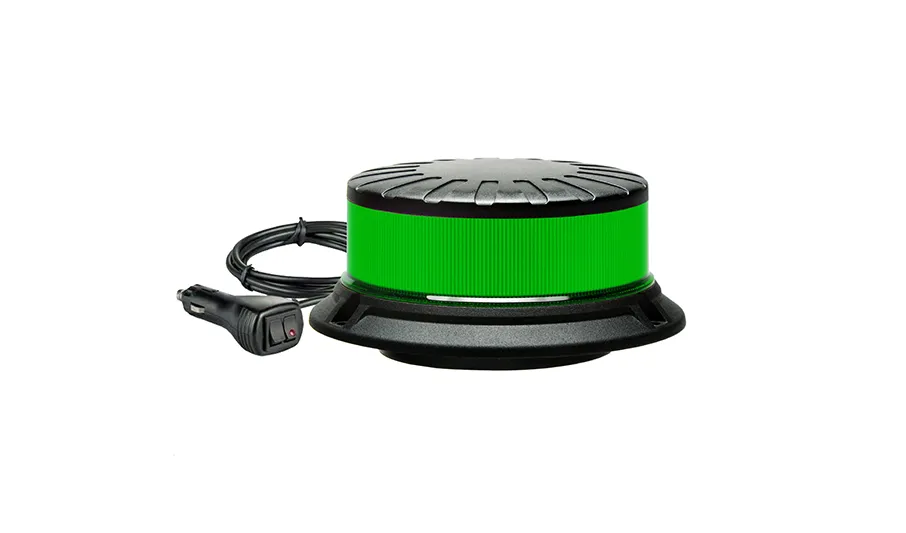

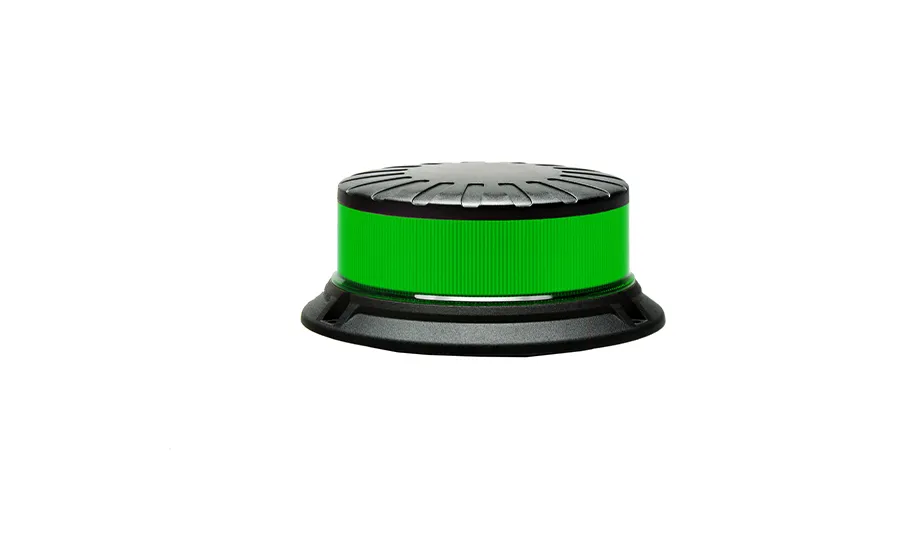

SM819G-HC	Strong Magnet Mount	55mm	ECE R10	DC 12-24V

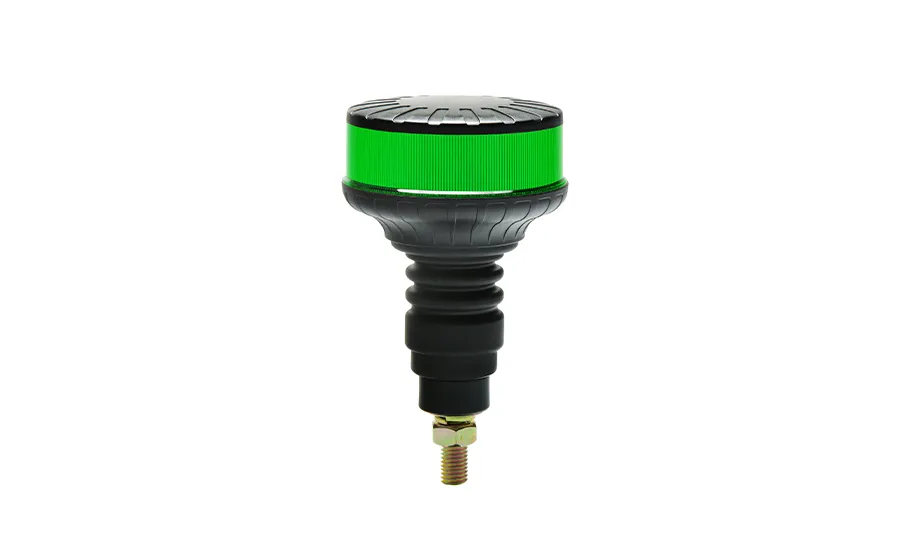

SM819G-IC	Flexible & Permanent Mount	165mm	ECE R10	DC 12-24V
SM819G-PC	3 Bolts Mount (Compact)	46mm	ECE R10	DC 12-24V

OEM / ODM Ready (MOQ 500 units): Custom logo, packaging, cable length, and flash patterns. Supported by our IATF 16949 & ISO 9001 certified factory with 18+ years of experience. Defect rate below 0.2%, 100% on-time delivery.

Technical Specifications (All Models)

Parameter	Specification
Product Series	SM819G Mini Beacon (5 Models)
LED Configuration	36 High-Intensity LEDs
Cover Dimensions	93mm × 33mm (All Models)
Heights	AC:142 / EC:96 / HC:55 / IC:165 / PC:46 (mm)
Housing Material	Heavy Duty Aluminum Mount + PC Lens
Sealing	Multiple Sealed Against Moisture and Dust
Operating Voltage	DC 12 V - 24 V
Certifications	ECE R10 (All Models)
Ingress Protection	IP6K9K (Dust-Tight, High-Pressure / Steam-Jet Proof)
Operating Temperature	-30°C to +50°C
Mount Options	Flexible Pipe / Permanent / Strong Magnet / Flexible & Permanent / 3 Bolts
Warranty	3 Years
Customization (MOQ 500 Units)	Custom Logo, Packaging, Cable Length, Flash Patterns
Manufacturer Certifications	IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25

Download Datasheet (PDF)

Why Choose Sumbexauto

Advantage	Detail
Manufacturing Experience	18+ Years
Quality Certification	IATF 16949 & ISO 9001
Defect Rate	Below 0.2%
On-Time Delivery	100%
Warranty	Up to 3 Years
R&D Capability	6-8 New Designs per Year, Over 100 Patents
OEM / ODM	Fast Response, Custom Logo, Packaging & Specifications
Testing Equipment	Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration
