SM820 Series flattop beacon — 7 mounting options. All models share a 115×78mm cover with 39 super bright LEDs, ECE R65 single flash, double flash, and ECE R10 rotation certified. IP66 waterproof, DC 12-24V wide voltage. Heights: AP (flexible pipe, 194mm), EP (single bolt, 147mm), GP (magnetic, 128mm), HP (magnetic/3 bolts, 111mm), IP (flexible & permanent, 217mm), MP (3 bolts, 108mm), PP (3 bolts, 96mm). Built for trucks, construction, mining, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The SM820 Series Flattop Beacon delivers versatile warning performance with ECE R65 single flash, double flash, and ECE R10 rotation modes — all in one compact unit. All 7 models feature 39 super bright LEDs, ECE R65 and ECE R10 certified, providing maximum flexibility for any safety protocol across global markets.
Built for demanding environments, each beacon features IP66 waterproof protection and operates reliably from -30°C to +50°C. The uniform 115×78mm flattop cover design ensures consistent visibility across all mounting styles. Available in 7 mount types: flexible pipe (AP, 194mm), single bolt (EP, 147mm), magnetic (GP, 128mm), magnetic/3 bolts (HP, 111mm), flexible & permanent (IP, 217mm), 3 bolts (MP, 108mm), and 3 bolts compact (PP, 96mm). Wide DC 12-24V compatibility ensures reliable performance on trucks, construction vehicles, mining equipment, agricultural machinery, and emergency response units.
| Model | Mount Type | Height | Flash Modes | Voltage |
|---|---|---|---|---|

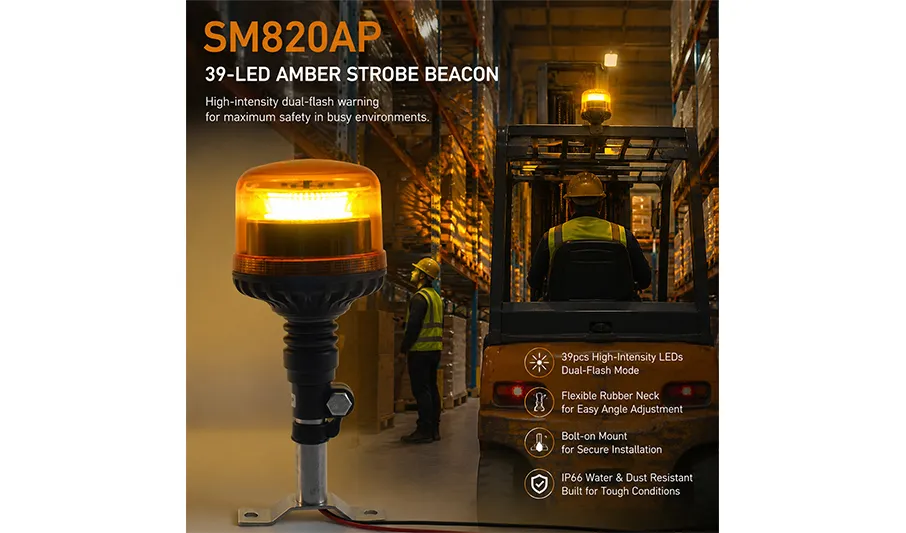

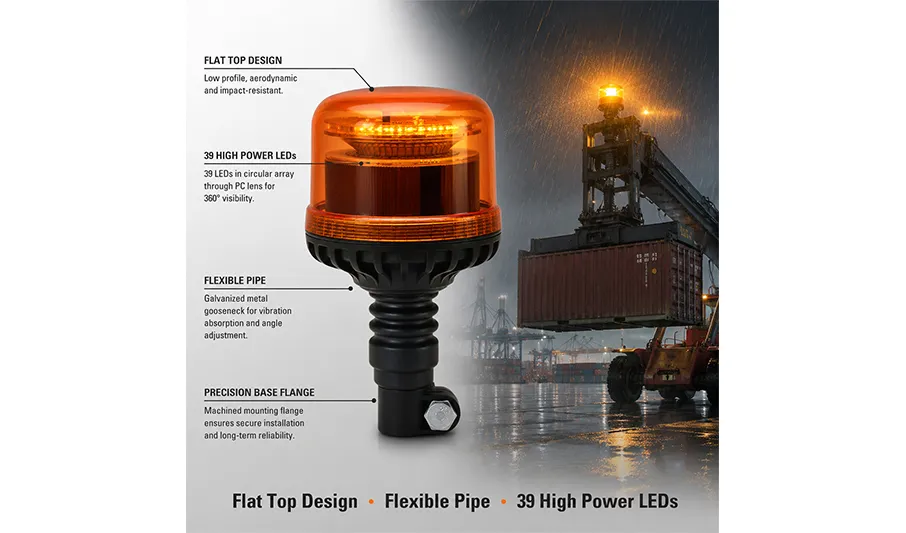

| SM820AP | Flexible Pipe Mount | 194mm | Single/Double/Rotation | DC 12-24V |

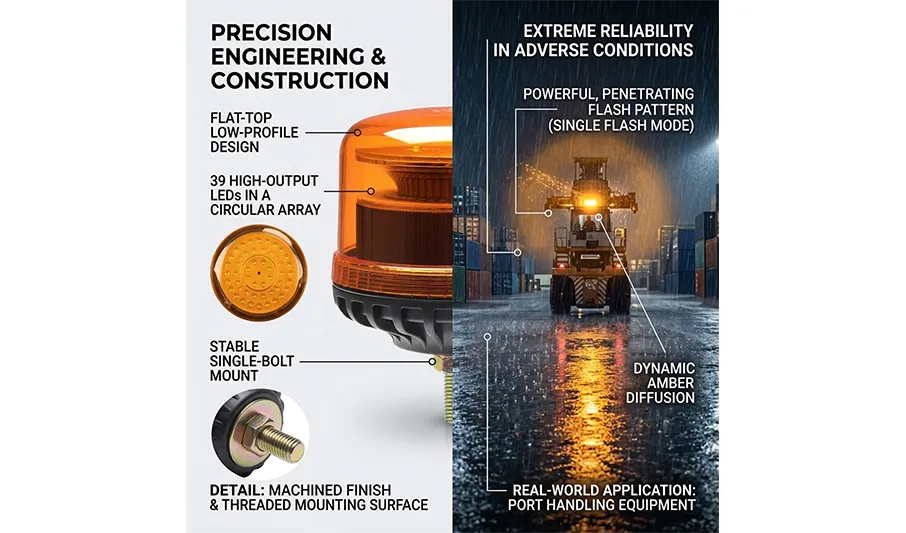

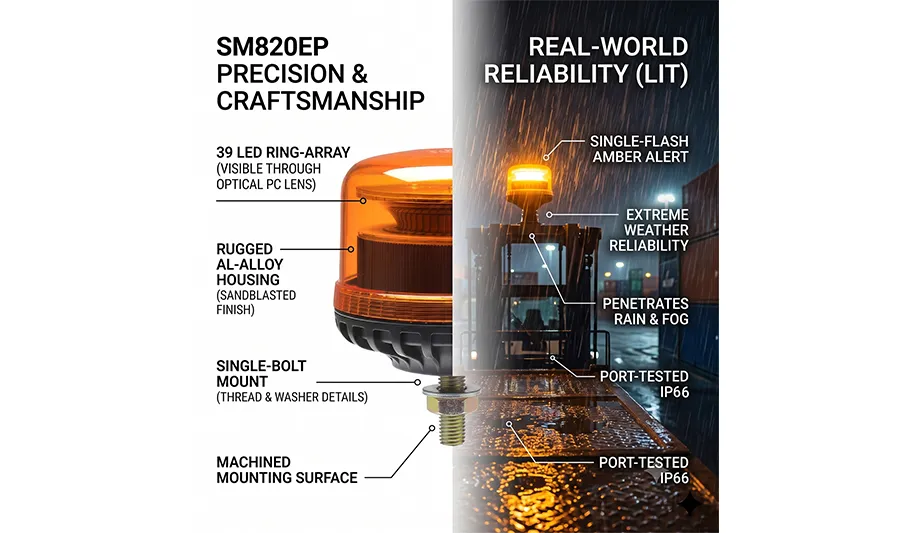

| SM820EP | Single Bolt Mount | 147mm | Single/Double/Rotation | DC 12-24V |

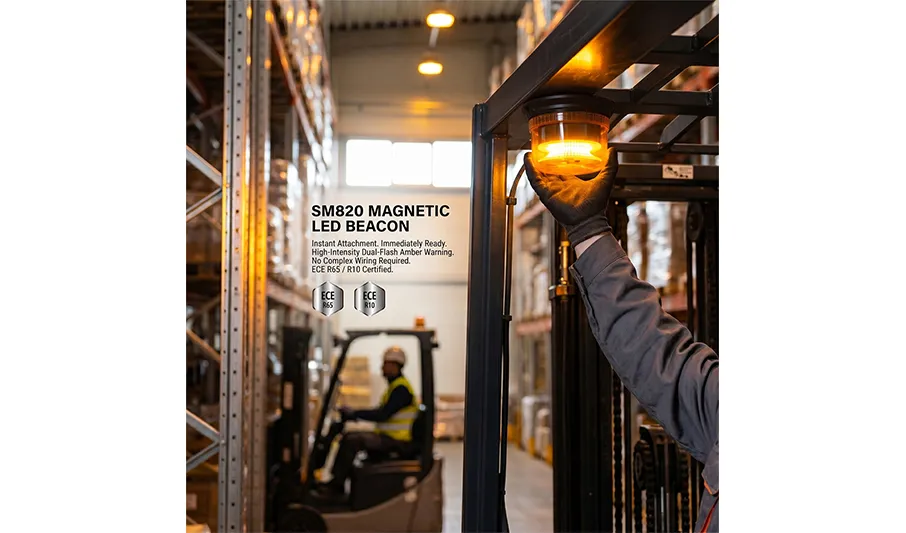

| SM820GP | Magnetic Mount | 128mm | Single/Double/Rotation | DC 12-24V |
| SM820HP | Magnetic / 3 Bolts Mount | 111mm | Single/Double/Rotation | DC 12-24V |
| SM820IP | Flexible & Permanent Mount | 217mm | Single/Double/Rotation | DC 12-24V |
| SM820MP | 3 Bolts Mount | 108mm | Single/Double/Rotation | DC 12-24V |
| SM820PP | 3 Bolts Mount (Compact) | 96mm | Single/Double/Rotation | DC 12-24V |
| Parameter | Specification |
|---|---|
| Product Series | SM820 Flattop Beacon (7 Models) |
| LED Configuration | 39 Super Bright LEDs |

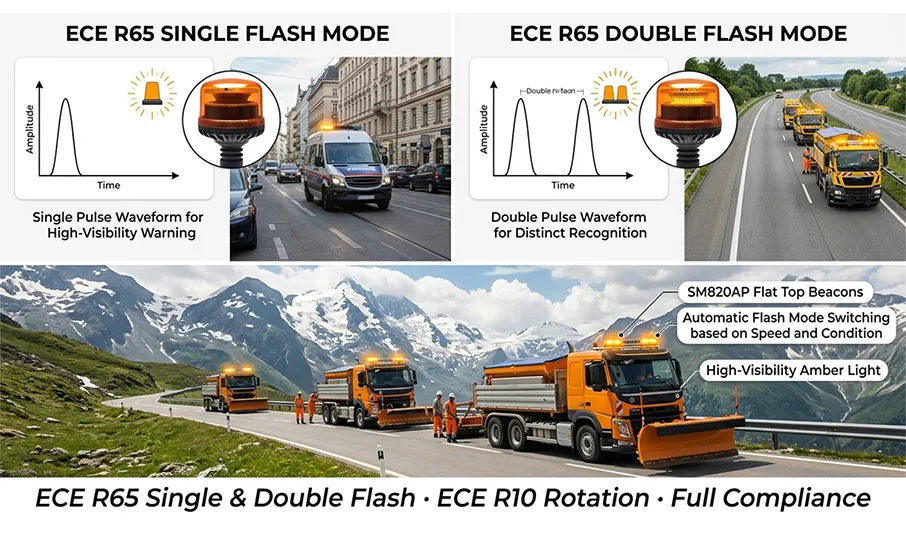

| Flash Modes | ECE R65 Single Flash / ECE R65 Double Flash / ECE R10 Rotation |
| Cover Dimensions | 115mm × 78mm (All Models) |
| Heights | AP:194 / EP:147 / GP:128 / HP:111 / IP:217 / MP:108 / PP:96 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |
| Ingress Protection | IP66 Waterproof |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Single Bolt / Magnetic / Magnetic+3 Bolts / Flexible+Permanent / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
