SM802 Series micro beacon — 9 mounting options, all IP66 waterproof. All models share a 126×119mm cover with 39 super bright LEDs, ECE R65 120 single and double flashes per minute, ECE R10 certified, and DC 12-24V wide voltage. Heights: AP (flexible pipe, 244mm), BP (pipe, 210mm), CP (flexible low, 187mm), DP (flexible spigot base, 224mm), EP (single bolt, 198mm), GP (magnetic, 175mm), HP (magnetic/3 bolts, 170mm), IP (flexible & permanent low profile, 265mm), PP (3 bolts, 156mm). Built for tractors, trucks, construction, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The SM802 Series Micro Beacon offers the widest selection of 9 mounting configurations — the most versatile beacon series in our lineup. All models feature 39 super bright LEDs with ECE R65 120 single and double flashes per minute, ECE R10 certified, and IP66 waterproof protection across every model, ensuring maximum durability for the most demanding agricultural, construction, and emergency applications.
The uniform 126×119mm cover ensures consistent visibility, while heights range from 156mm to 265mm. Available in flexible pipe (AP), pipe (BP), flexible low mount (CP), flexible spigot base (DP), single bolt (EP), magnetic (GP), magnetic/3 bolts (HP), flexible & permanent low profile (IP), and 3-bolt (PP) mounts. All operate on DC 12-24V from -30°C to +50°C. Ideal for tractors, trucks, construction vehicles, forklifts, and emergency response units.
| Model | Mount Type | Height | Flash | Voltage |
|---|---|---|---|---|

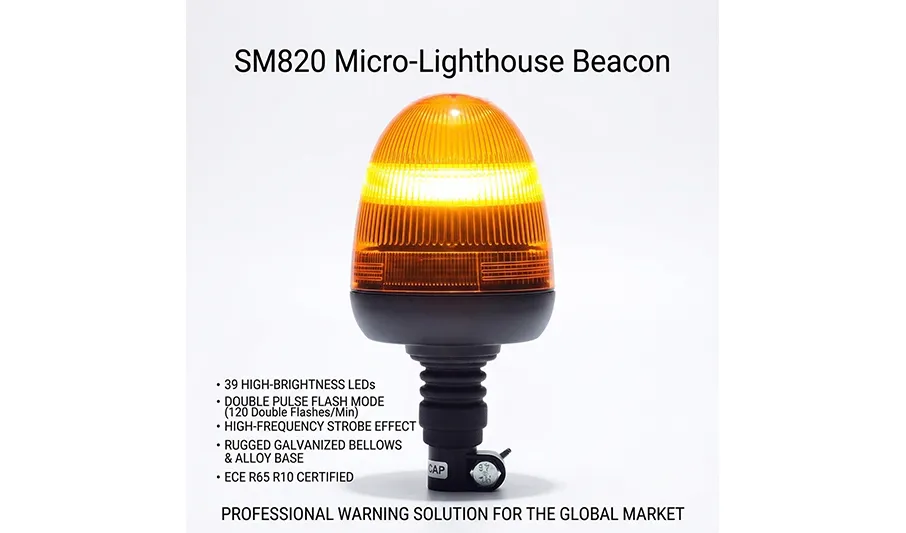

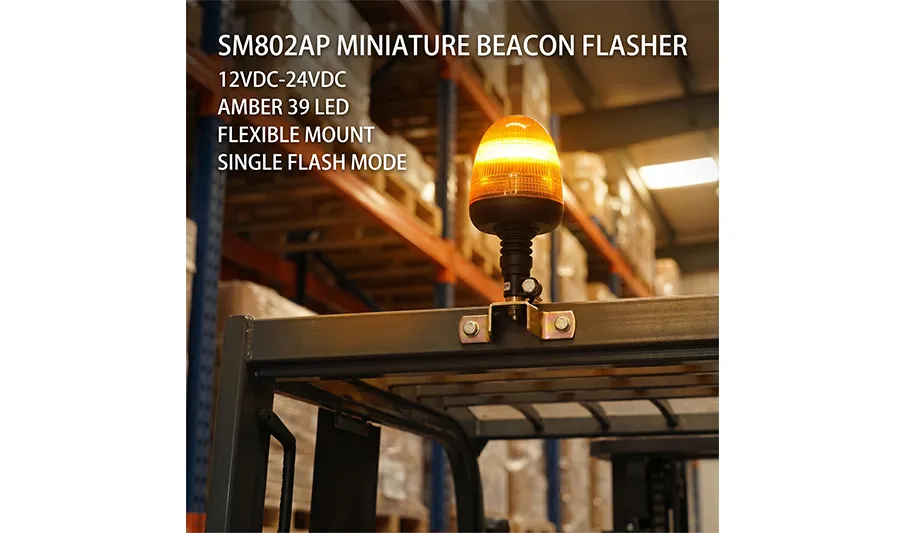

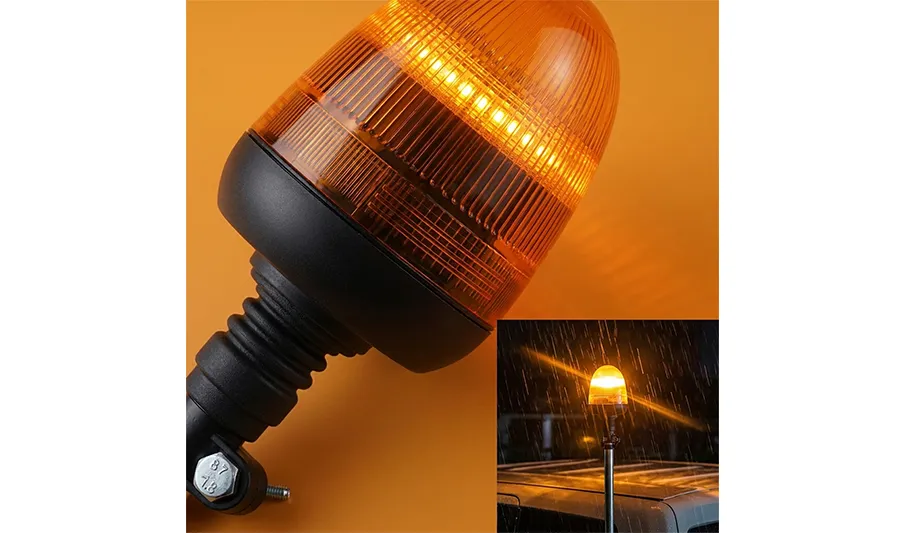

| SM802AP | Flexible Pipe Mount | 244mm | 120 FPM Single/Double | DC 12-24V |
| SM802BP | Pipe Mount | 210mm | 120 FPM Single/Double | DC 12-24V |
| SM802CP | Flexible Low Mount | 187mm | 120 FPM Single/Double | DC 12-24V |
| SM802DP | Flexible Spigot Base | 224mm | 120 FPM Single/Double | DC 12-24V |

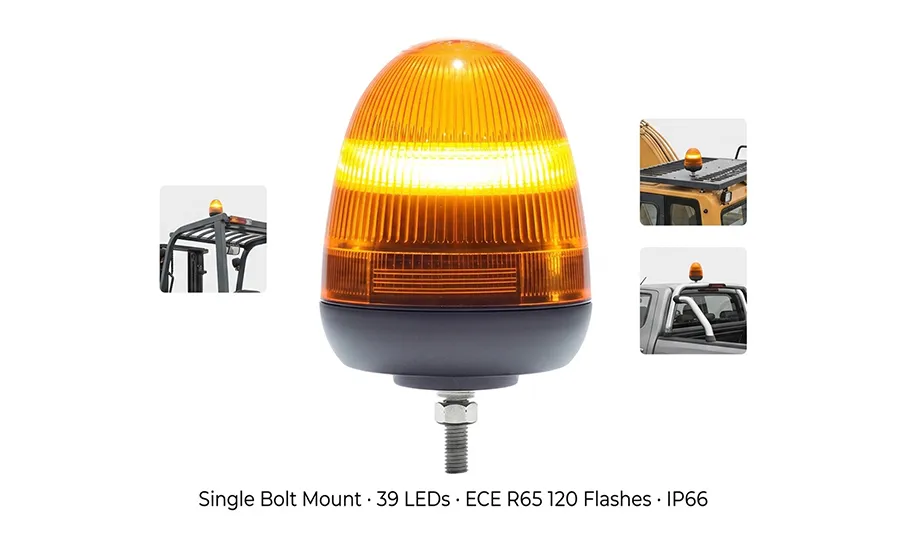

| SM802EP | Single Bolt Mount | 198mm | 120 FPM Single/Double | DC 12-24V |
| SM802GP | Magnetic Mount | 175mm | 120 FPM Single/Double | DC 12-24V |
| SM802HP | Magnetic / 3 Bolts | 170mm | 120 FPM Single/Double | DC 12-24V |
| SM802IP | Flexible & Permanent Low Profile | 265mm | 120 FPM Single/Double | DC 12-24V |
| SM802PP | 3 Bolts Mount | 156mm | 120 FPM Single/Double | DC 12-24V |
| Parameter | Specification |
|---|---|
| Product Series | SM802 Micro Beacon (9 Models) |
| LED Configuration | 39 Super Bright LEDs |

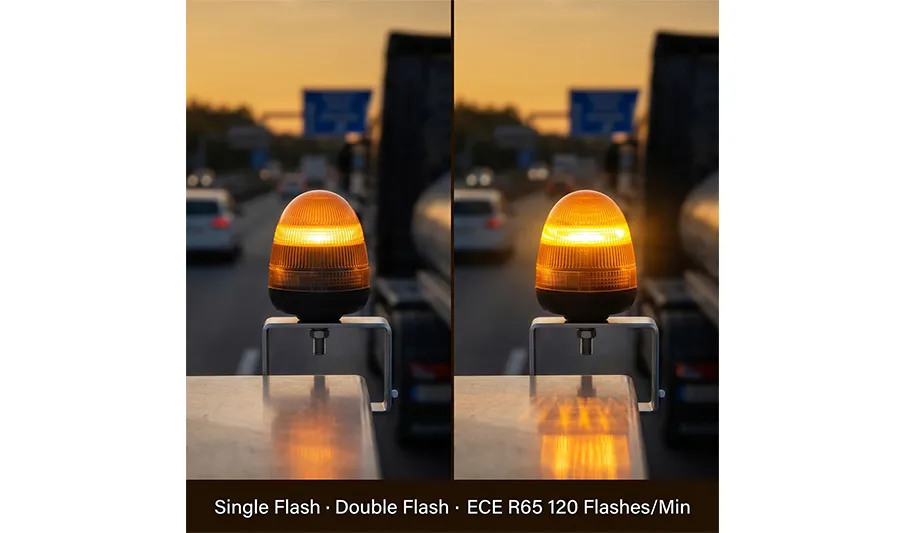

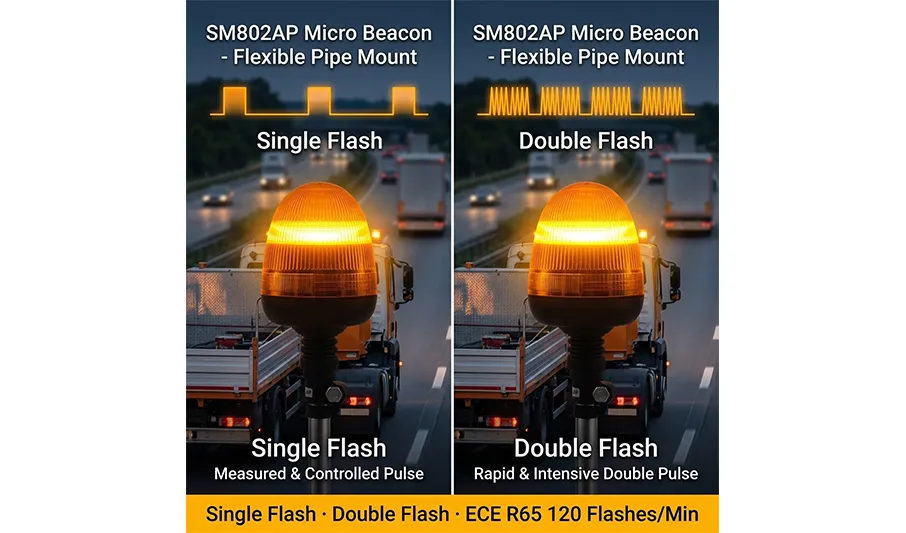

| Flash Rate | ECE R65 120 Single & Double Flashes per Minute |
| Cover Dimensions | 126mm × 119mm (All Models) |
| Heights | AP:244 / BP:210 / CP:187 / DP:224 / EP:198 / GP:175 / HP:170 / IP:265 / PP:156 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Pipe / Flexible Low / Flexible Spigot / Single Bolt / Magnetic / Magnetic+3 Bolts / Low Profile / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
