SM812 Series micro beacon — 8 mounting options to fit any vehicle. All models share the same 114×52mm cover with 36 super bright LEDs, ECE R65 120 flashes per minute, ECE R10 certified, IP66 waterproof, and DC 12-24V wide voltage. Heights vary by mount type: AC (flexible pipe, 166mm), EC (single bolt, 124mm), GC (magnetic, 95mm), HC (magnetic, 80mm), IC (flexible & permanent, 191mm), KC (3 bolts, 81mm), MC (3 bolts, 82mm), PC (3 bolts, 69mm). Built for trucks, forklifts, construction, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The SM812 Series Micro Beacon offers 8 distinct mounting configurations to fit virtually any vehicle or equipment setup. All models share the same powerful core — 36 super bright LEDs delivering ECE R65 compliant 120 flashes per minute, ECE R10 certified, and IP66 waterproof protection. The uniform 114×52mm cover design ensures consistent visibility across all mounting styles.
Choose the mount that fits your application: flexible pipe (AC, 166mm), single bolt (EC, 124mm), magnetic (GC, 95mm / HC, 80mm), flexible & permanent (IC, 191mm), or 3-bolt fixed (KC, 81mm / MC, 82mm / PC, 69mm). All models operate on wide DC 12-24V voltage and withstand extreme temperatures from -30°C to +50°C. Ideal for trucks, forklifts, construction vehicles, agricultural machinery, emergency response units, and industrial equipment.
| Model | Mount Type | Height | Flash Rate | Voltage |
|---|---|---|---|---|
| SM812AC | Flexible Pipe Mount | 166mm | 120 FPM | DC 12-24V |
| SM812EC | Single Bolt Mount | 124mm | 120 FPM | DC 12-24V |
| SM812GC | Magnetic Mount | 95mm | 120 FPM | DC 12-24V |
| SM812HC | Magnetic Mount (Low Profile) | 80mm | 120 FPM | DC 12-24V |
| SM812IC | Flexible & Permanent Mount | 191mm | 120 FPM | DC 12-24V |
| SM812KC | 3 Bolts Mount | 81mm | 120 FPM | DC 12-24V |
| SM812MC | 3 Bolts Mount | 82mm | 120 FPM | DC 12-24V |

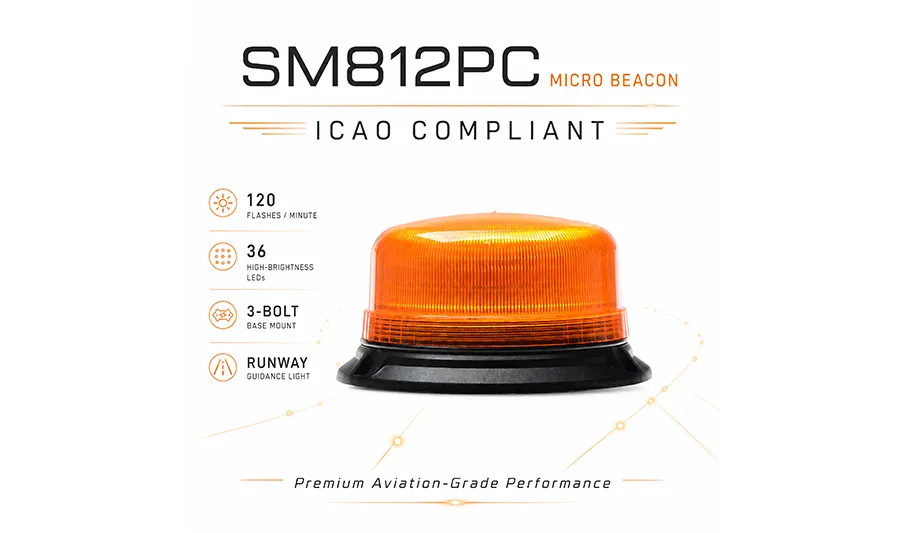

| SM812PC | 3 Bolts Mount (Compact) | 69mm | 120 FPM | DC 12-24V |
| Parameter | Specification |
|---|---|
| Product Series | SM812 Micro Beacon (8 Models) |
| LED Configuration | 36 Super Bright LEDs |
| Flash Rate | ECE R65 120 Flashes per Minute |
| Cover Dimensions | 114mm × 52mm (All Models) |
| Heights | AC:166 / EC:124 / GC:95 / HC:80 / IC:191 / KC:81 / MC:82 / PC:69 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |
| Ingress Protection | IP66 Waterproof |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Single Bolt / Magnetic / Flexible & Permanent / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
