SM819 Series mini beacon — 5 mounting options. All models share a 93×33mm cover with 36 high-intensity LEDs, ECE R65 TA2, ECE R10, and SAE J845 Class 1 certified. IP6K9K steam-jet proof, DC 12-24V wide voltage, heavy duty aluminum mount with PC lens for superior heat dissipation. Automatic light sensor for day and night modes, multiple sealed against moisture and dust. Heights: AC (flexible pipe, 142mm), EC (single bolt, 96mm), HC (strong magnet, 55mm), IC (flexible & permanent, 165mm), PC (3 bolts, 46mm). Built for trucks, construction, mining, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

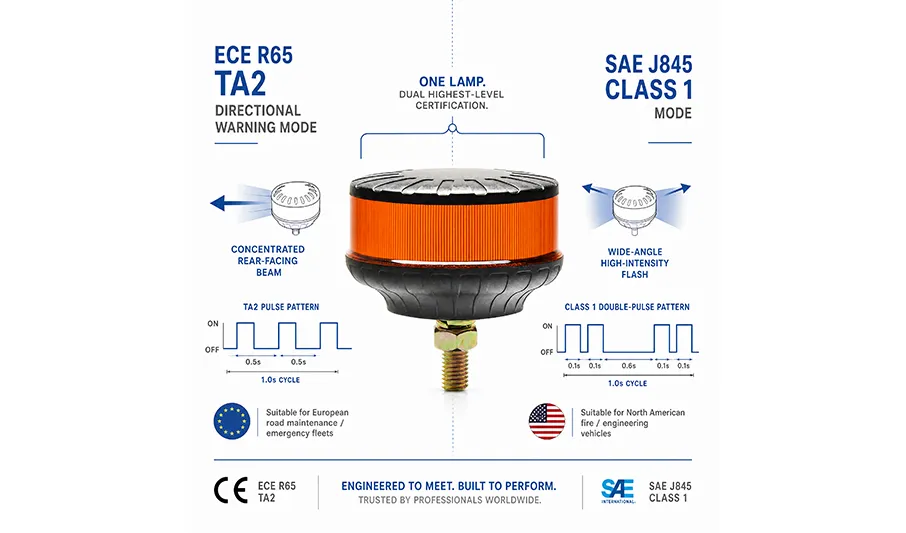

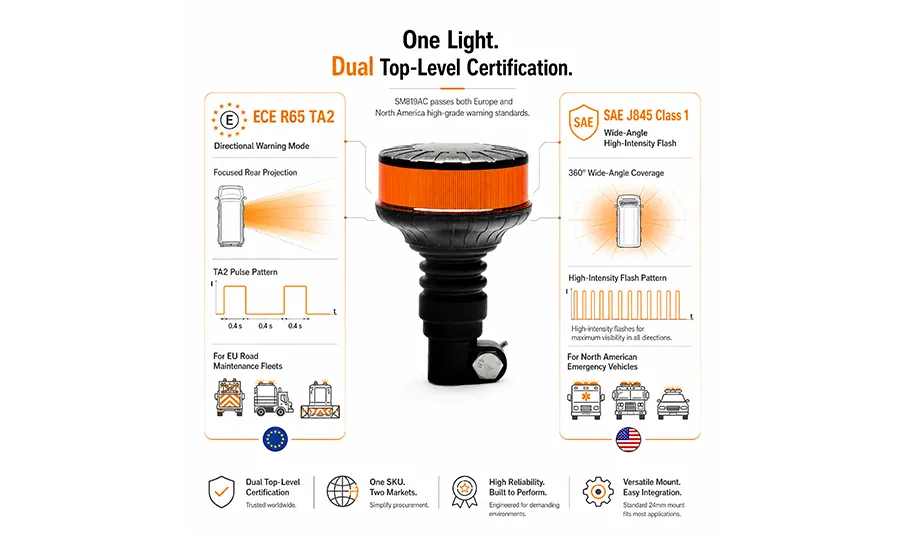

The SM819 Series Mini Beacon delivers professional-grade warning performance in a compact, ultra-durable design. All 5 models feature 36 high-intensity LEDs, ECE R65 TA2 and ECE R10 certified, with SAE J845 Class 1 compliance — meeting the most stringent global safety standards for emergency and utility vehicles.

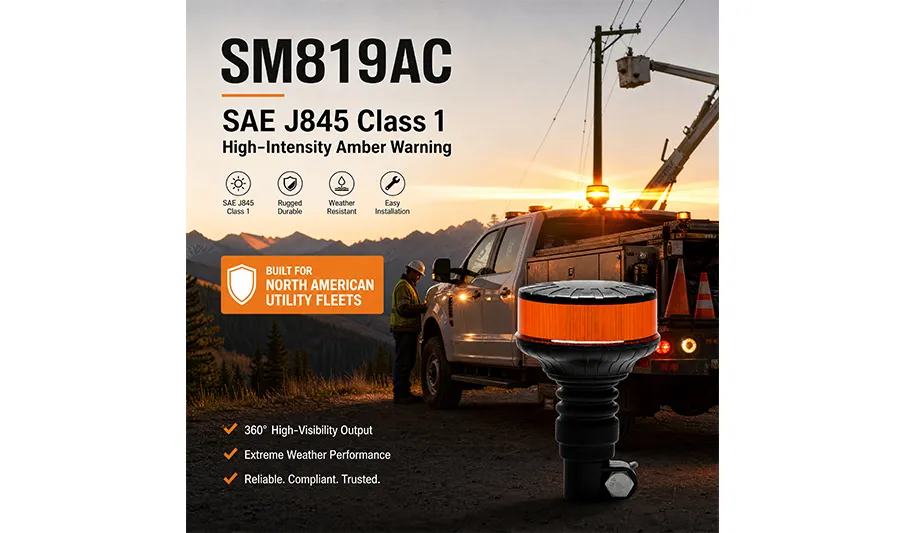

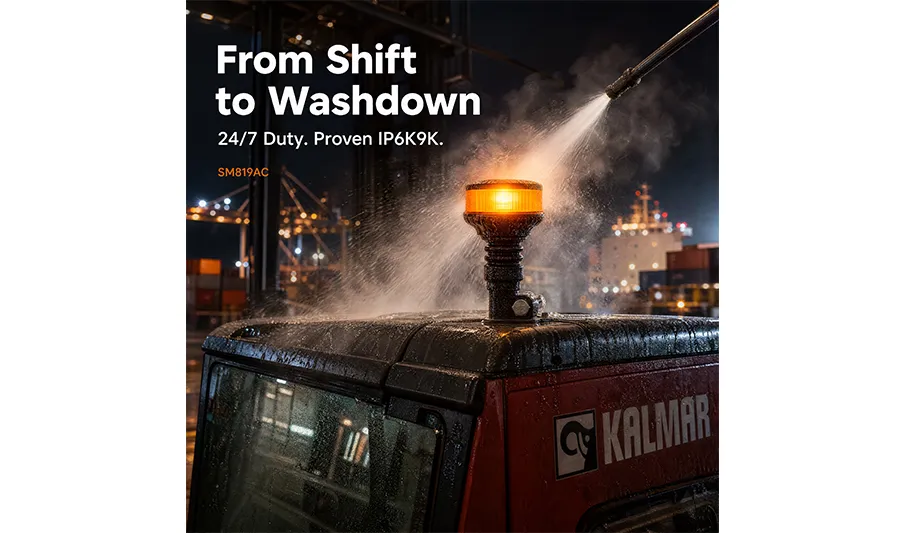

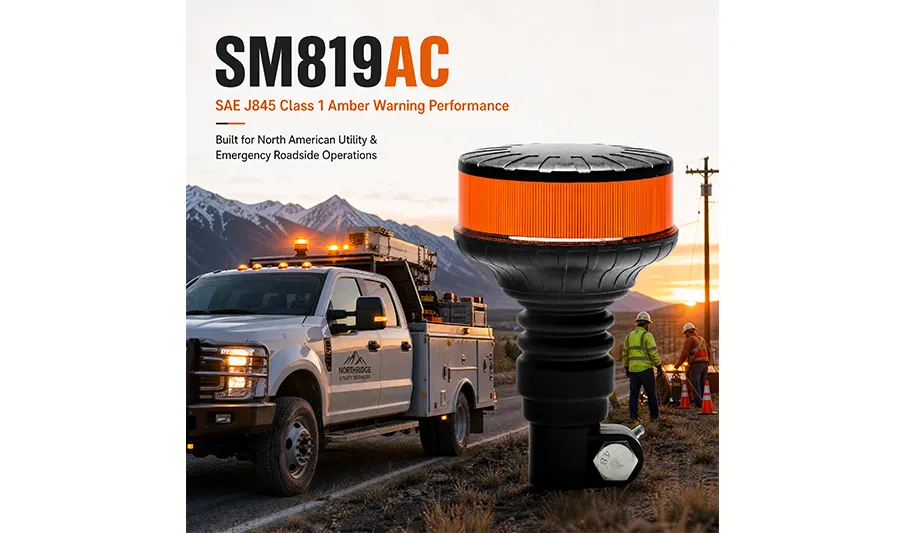

Engineered for extreme environments, each beacon features IP6K9K protection — fully dust-tight and steam-jet proof — with multiple seals against moisture and dust. The heavy duty aluminum mount draws heat away from LEDs while the PC lens provides impact resistance. An automatic light sensor adjusts brightness for day and night operation. Available in 5 mount types: flexible pipe (AC, 142mm), single bolt (EC, 96mm), strong magnet (HC, 55mm), flexible & permanent (IC, 165mm), and 3-bolt compact (PC, 46mm). All operate on DC 12-24V from -30°C to +50°C.
| Model | Mount Type | Height | Certification | Voltage |
|---|---|---|---|---|
| SM819AC | Flexible Pipe Mount | 142mm | ECE R65 TA2, SAE J845 | DC 12-24V |
| SM819EC | Single Bolt Mount | 96mm | ECE R65 TA2, SAE J845 | DC 12-24V |
| SM819HC | Strong Magnet Mount | 55mm | ECE R65 TA2, SAE J845 | DC 12-24V |
| SM819IC | Flexible & Permanent Mount | 165mm | ECE R65 TA2, SAE J845 | DC 12-24V |
| SM819PC | 3 Bolts Mount (Compact) | 46mm | ECE R65 TA2, SAE J845 | DC 12-24V |
| Parameter | Specification |
|---|---|
| Product Series | SM819 Mini Beacon (5 Models) |
| LED Configuration | 36 High-Intensity LEDs |
| Cover Dimensions | 93mm × 33mm (All Models) |
| Heights | AC:142 / EC:96 / HC:55 / IC:165 / PC:46 (mm) |
| Housing Material | Heavy Duty Aluminum Mount + PC Lens |
| Auto Light Sensor | Yes — Automatic Day and Night Mode Adjustment |
| Sealing | Multiple Sealed Against Moisture and Dust |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65 TA2, ECE R10, SAE J845 Class 1 |
| Ingress Protection | IP6K9K (Dust-Tight, High-Pressure / Steam-Jet Proof) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Single Bolt / Strong Magnet / Flexible & Permanent / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
