SM817S/SC heavy duty warning beacon — SM817S (Amber) and SM817SC (White). Both feature 16 high-power 3W LEDs, 8 selectable flash patterns, SAE J845 Class 1 and E9 approved with EMC compliance. IP66 waterproof, DC 12-48V wide voltage, heavy duty aluminum mount with single bolt or 3-bolt installation. Dimensions: 166×74mm (dome: 136×54mm). Reliable operation from -30°C to +50°C. Built for trucks, construction, mining, and heavy-duty equipment.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

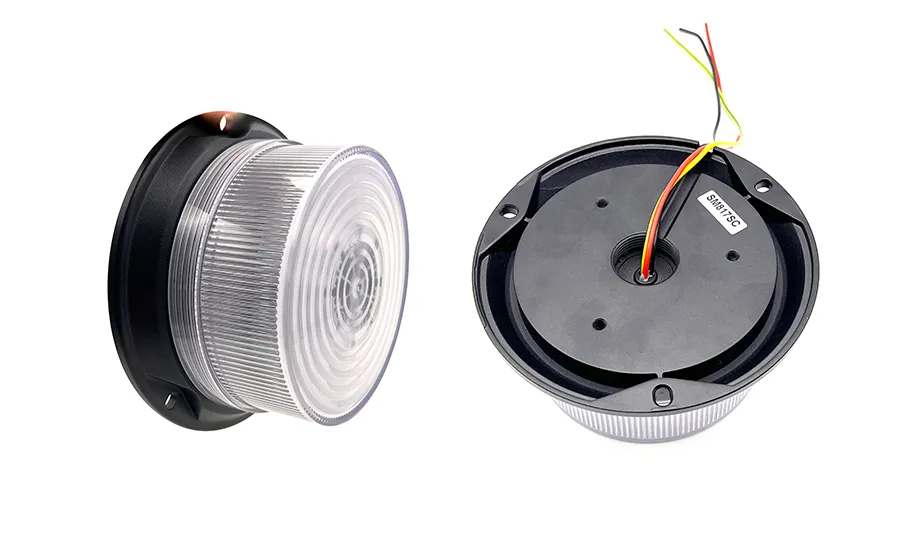

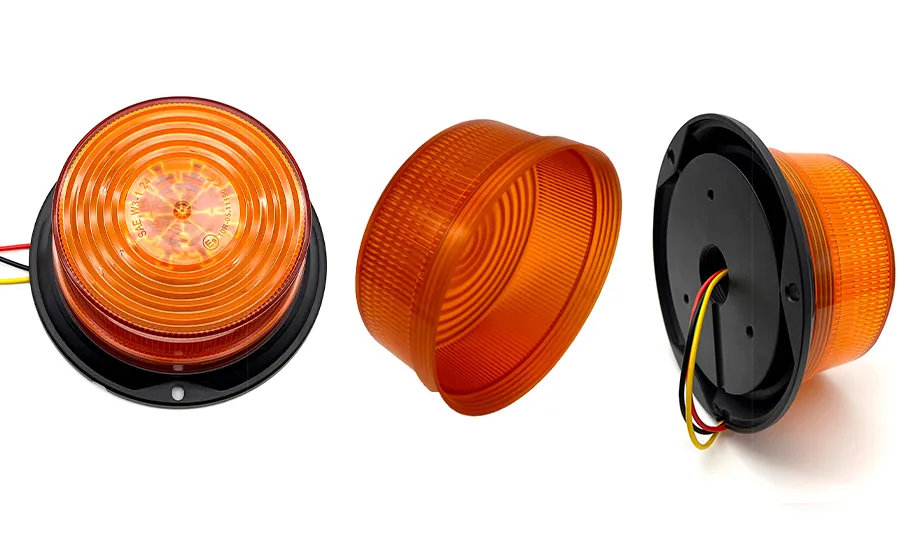

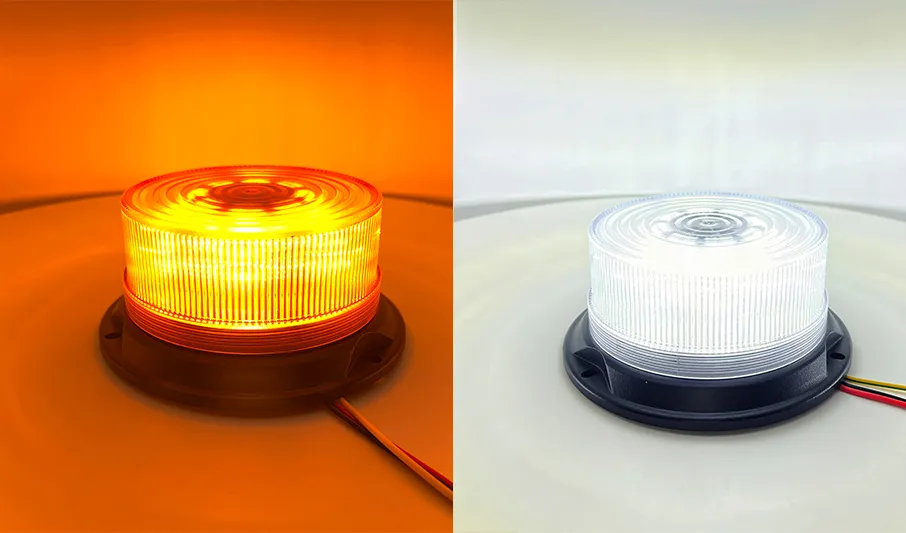

The SM817S/SC Heavy Duty Warning Beacon delivers powerful 360-degree warning visibility with 16 high-power 3W LEDs. Available in Amber (SM817S) and White (SM817SC), both models are SAE J845 Class 1 certified and E9 approved with EMC compliance. 8 selectable flash patterns provide flexibility for any safety protocol across global markets.

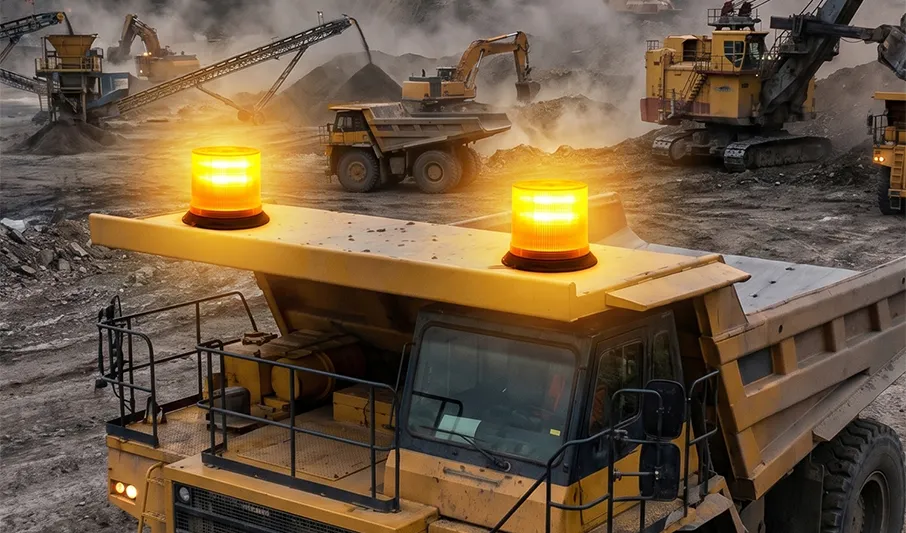

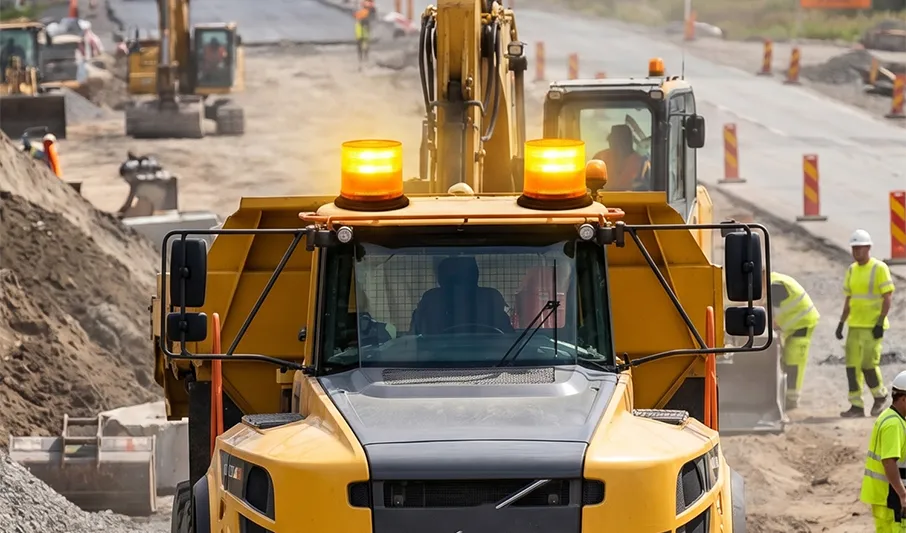

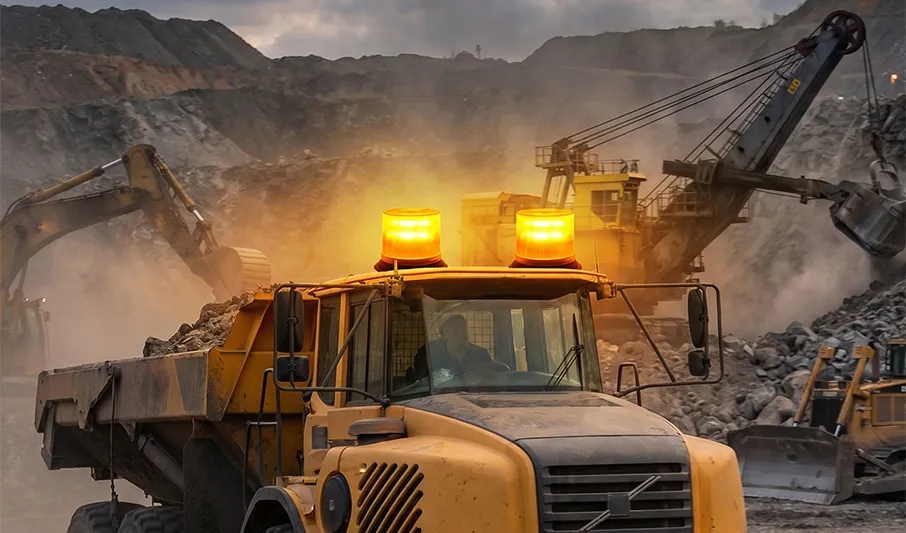

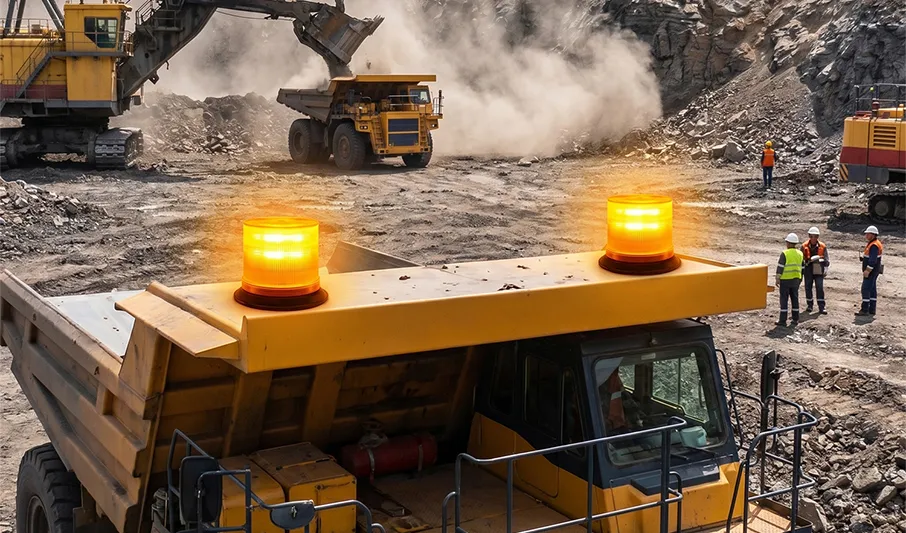

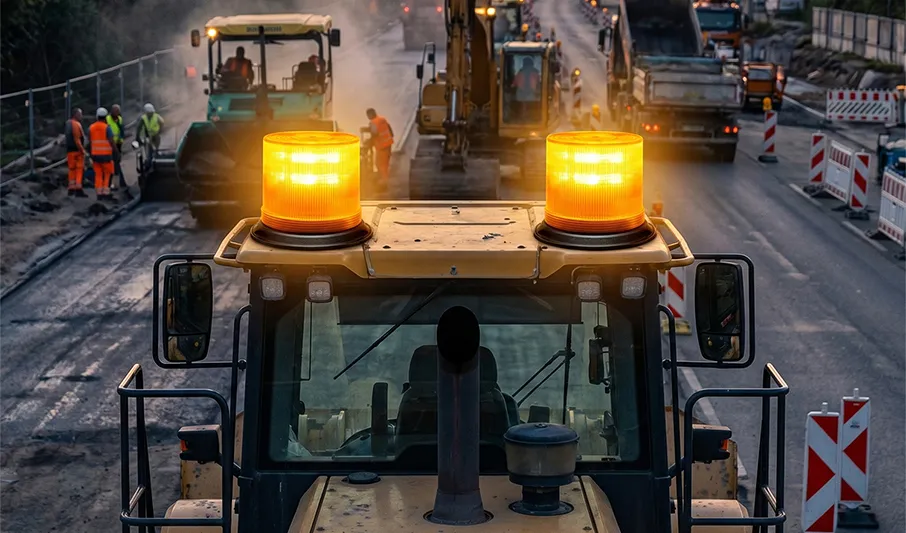

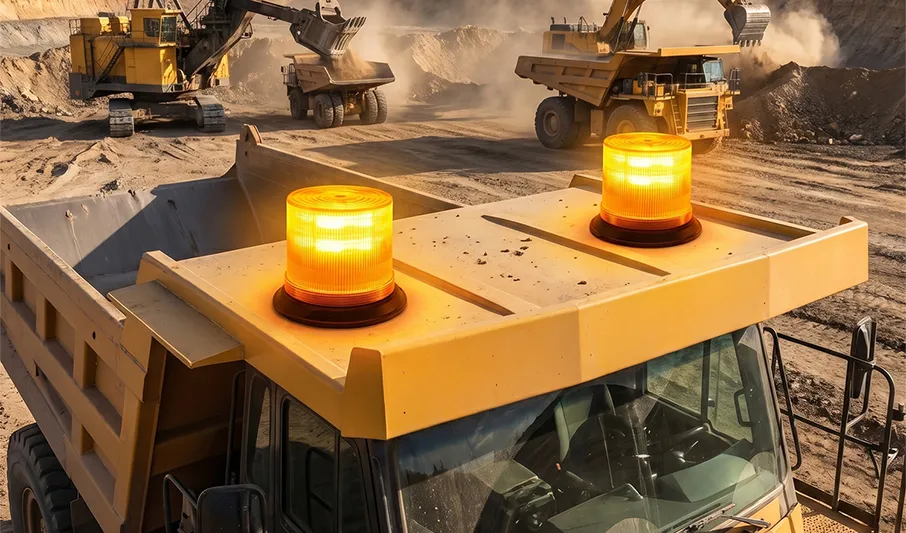

Built for the toughest environments, this beacon features IP66 waterproof protection, DC 12-48V wide voltage compatibility, and a heavy-duty aluminum mount with permanent single bolt or 3-bolt installation options. Compact dimensions of 166×74mm (dome: 136×54mm) and reliable operation from -30°C to +50°C make it ideal for trucks, construction vehicles, mining equipment, agricultural machinery, and heavy-duty industrial applications.
| Parameter | Specification |
|---|---|
| Product Series | SM817 Heavy Duty Warning Beacon |
| Available Models | SM817S (Amber) / SM817SC (White) |
| LED Configuration | 16 pcs × 3W High-Power LEDs |
| Flash Patterns | 8 Selectable Patterns |
| Operating Voltage | DC 12 V - 48 V (Wide Range) |
| Certifications | SAE J845 Class 1, E9 Approved, EMC |

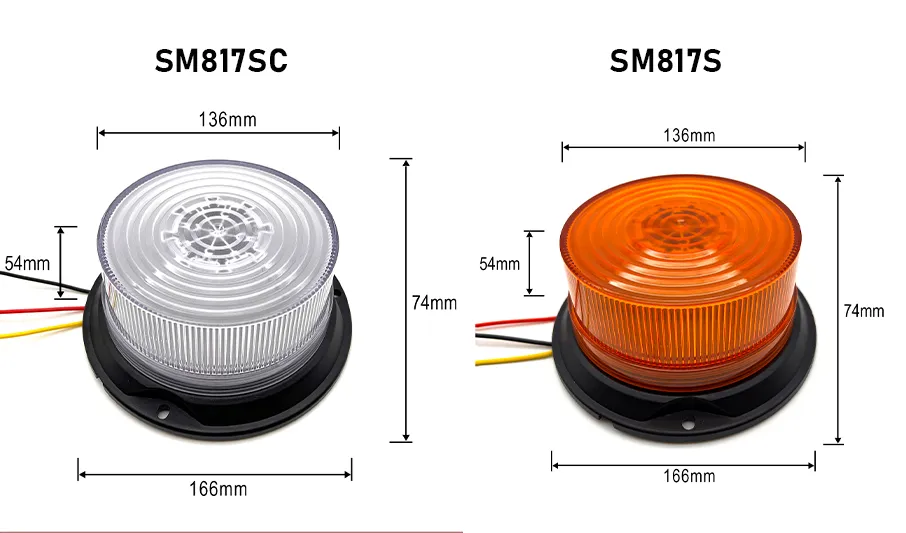

| Dimensions (H × D) | 166mm × 74mm (Dome: 136mm × 54mm) |
| Ingress Protection | IP66 Waterproof |
| Operating Temperature | -30°C to +50°C |
| Mount Type | Heavy Duty Aluminum Mount |
| Mounting Options | Permanent Single Bolt or 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
